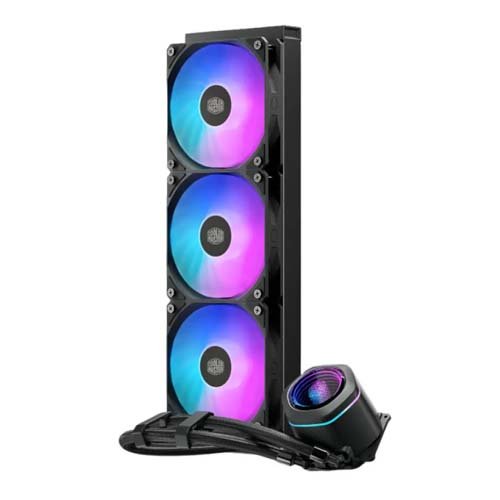

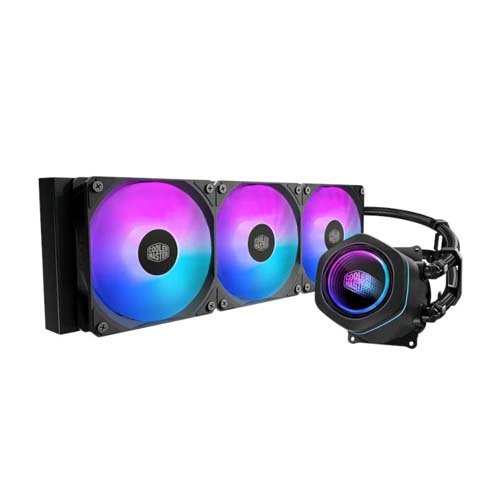

Cooler Master MasterLiquid Core Nex 360 ARGB Liquid CPU Cooler MLX-D36M-A18PA-R1
Overview :
MasterLiquid Core Nex Series
Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.
Flexible Pump Orientation
Featuring a rotatable pump cover that allows users to customize the orientation for the perfect look.
Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless
Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets
Specification :
| Product Series | MASTERLIQUID CORE NEX SERIES |
| Product Number | MLX-D36M-A18PA-R1 |
| Exterior Color | Black |
| CPU Socket | Intel: Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 AMD: AMD® AM5 / AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch) |
| Tube Length | 400 mm |
| Pump Dimension | 83.6 x 78.5 x 62.9 mm (3.3 x 3.1 x 2.5 inch) |
| Pump Profile | Addressable RGB |
| Pump Speed | 3200 ±10% RPM |
| Pump MTTF | > 35,0000 hours |
| Pump Noise Level | 25 dB(A) |
| Pump Connector | 3-Pin ARGB + 4 Pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 7.2 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable RGB |
| Fan Speed | 650 ~ 1750 RPM ± 10% |
| Fan Airflow | 122.4 m³/h (71.9 CFM) |
| Fan Noise Level | 27.2 dB(A) |
| Fan Pressure | 1.86 mm H2O |
| Fan Bearing Type | Rifle |
| Fan MTTF | > 40,000 hours |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26 A |
| Fan Safety Current | 0.37 A |
| Power Consumption | 3.12 W |
| Warranty | 5 Years |
