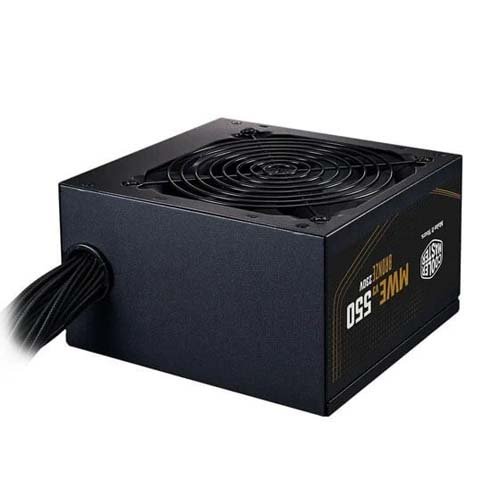

Cooler Master MWE 550 V3 ATX 3.1 230V 80 Plus Bronze SMPS MPE-5501-ACABW-3BIN
Overview :
- ATX 3.1 support
- High temperature resilience
- Quiet HDB fan
- 80 Plus Bronze certified efficiency
- Embossed cable
- 5-year warranty
Specification :
| Model Number | MPE-5501-ACABW-3BIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | >88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.) |
| Series | MWE Bronze Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus | Bronze |
| Form Factor | ATX |
| Watts | 550W |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 2 |
| Warranty | 5 Years |
