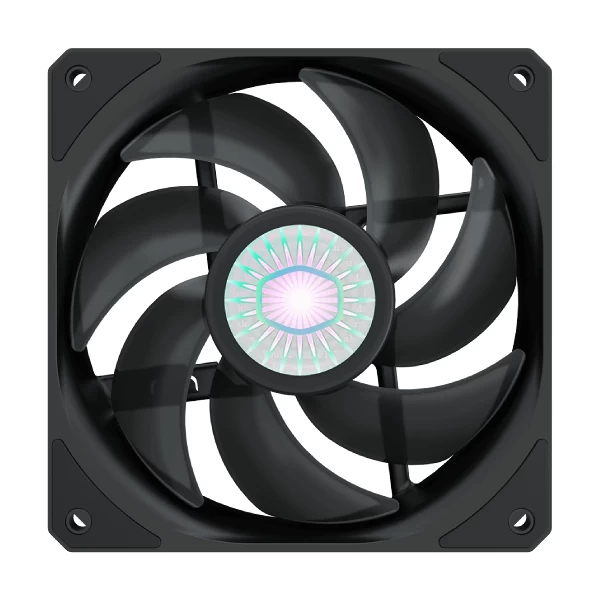

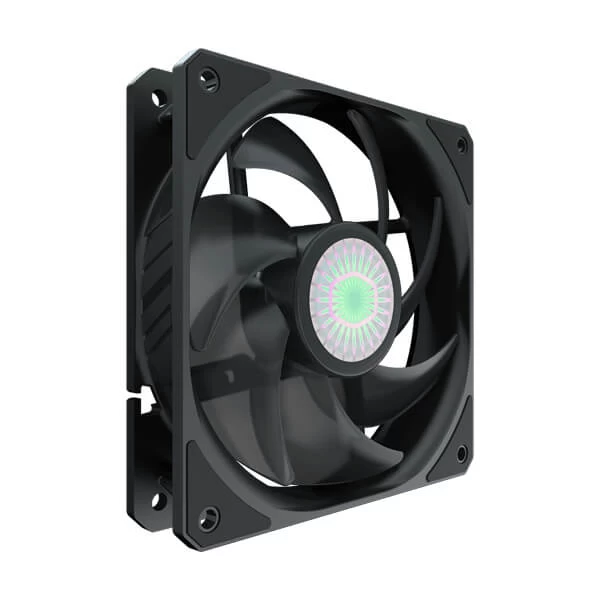

Cooler Master SickleFlow 120 Cabinet Fan (Single Pack) MFX-B2NN-18NPK-R1
Overview :
- New Blade Design
- Enhanced Fan Frame
- Sealed Bearing Structure
- Certified Compatible
NEXT GENERATION OF SICKLEFLOW FANS
SickleFlow 120, a new series of the CoolerMaster Fan family, provides a specific air cooling solution ideal for CPU coolers and chassis in-take fans. Optimized blade design with updated curve that improves air flow and air pressure. Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency. Sealed and secured fan bearing, preventing dust and lubricating oil leakage while increasing the fan’s operation stability and life span.
ENHANCED FAN FRAME
Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency.
NEW BEARING SEALANT
Improve dustproof properties as well as prevent sleeve lubricant from leaking.
NEW BLADE DESIGN
Optimized blade design with updated curve that improves air flow and air pressure.
Specification :
| PRODUCT NUMBER | MFX-B2NN-18NPK-R1 |
| FAN PROFILE | Non-LED |
| FAN BEARING TYPE | Rifle Bearing |
| FAN SPEED | 650-1800 RPM ± 10% |
| FAN AIRFLOW | 62 CFM ± 10% |
| FAN AIR PRESSURE | 2.5 mmH2O ± 10% |
| FAN NOISE LEVEL | 8 – 27 dBA |
| FAN DIMENSIONS (L X W X H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| FAN MTTF | 160,000 Hours |
| FAN RATED VOLTAGE | 12VDC |
| FAN RATED CURRENT | 0.15A |
| FAN SAFETY CURRENT | 0.37A |
| FAN POWER CONSUMPTION | 1.8W |
| FAN POWER CONNECTOR | 4-Pin (PWM) |
| FAN WEIGHT | 156g / 0.34 lbs |
| SERIES | SickleFlow |
| FAN TYPE | Case Fan |
| FAN SIZE | 120 |
| FAN – LED LIGHTING | Non-LED |
| WARRANTY | 2 Years |
