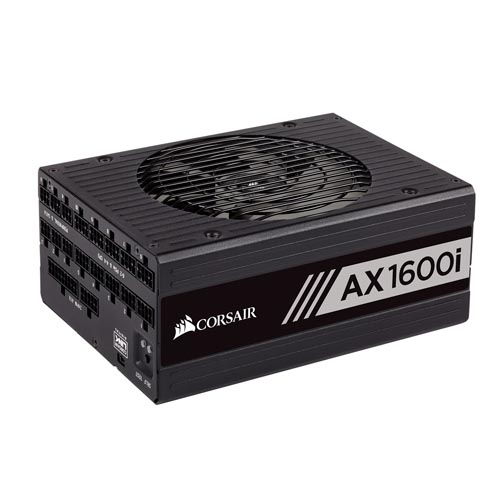

Corsair AX1600i 1600W 80 Plus Titanium Fully Modular Power Supply CP-9020087-IN
Overview :
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the highest quality components for unmatched performance and better than 80 PLUS Titanium efficiency. State-of-the-art gallium nitride transistors and 100% 105°C Japanese capacitors deliver 1600W of ultra-stable, ultra-efficient power, while the AX1600i’s digital design allows for complete control and monitoring in CORSAIR LINK software. Adjust fan speeds, switch between single or multi-rail overcurrent protection (OCP), or monitor your PSU’s voltages and efficiency. Zero RPM Fan mode ensures near-silent operation at low and medium loads and the fully modular, low profile cable set makes for easy installation and great-looking builds. It’s the ultimate PSU for the most ambitious PC builds.
Main Features
- 1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power.
- Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.
- The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
- World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise.
- Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting.
- Take Control: CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail over current protection (OCP), all from your desktop.
- 140mm Patented FDB cooling fan: Delivers low-noise operation even at demanding loads.
- Zero RPM Fan Mode: For near-silent operation at low to medium loads.
- Choose Your Color: Three-color customizable magnetic side labels let you choose your PSU’s style to match your build.
- Fully Modular Cables: Use only the cables you need for quick and easy installation.
- Built to Last: Ten-Year comprehensive CORSAIR warranty.
Specification :
| Interfaces/Ports | |
| SATA Connectors | 16 x SATA III |
| CPU Connectors | 2 x 4 4-pin EPS |
| PCI Connectors | 10 x 6 2-pin PCIe |
| Motherboard Connectors | 1 x 20 4-pin ATX |
| Molex Connectors | 9 |
| Floppy Connectors | 2 x Floppy (via Adapter) |
| Electrical | |
| Voltage | 100 ~ 240 V |
| Power | 1600 W |
| Frequency Range | 50 ~ 60 Hz |
| Physical | |
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.65 kg |
| Warranty | |
| Warranty | 10 Years |
| Key Features | |
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Titanium |
| PSU Form Factor | ATX |
| PCI-E Connectors | 10 |
| Floppy Connector | 2 |
| Motherboard Power Connectors | 4 4-Pin x 2 |
| PCI-E Pin Type | 6 2-Pin |
| PSU Depth | 200 mm |
| ETA Efficiency Cert. | A |
| Lambda Noise Cert. | A |
| CPU Power Pins (male) | 16 |
| PCI-E Power Pins (male) | 80 |
| Item Details | |
| Manufacturer | Corsair |
| Manufacturer Code | CP-9020087-IN |
