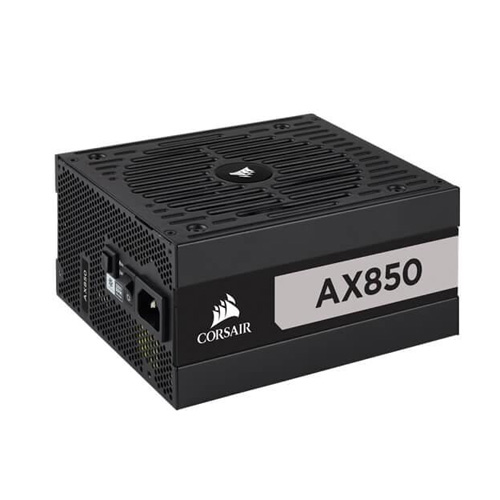

CORSAIR AX850 SMPS 850 WATT 80 PLUS TITANIUM CERTIFICATION FULLY MODULAR PSU CP-9020151-UK
Overview :
WORLD CLASS ELECTRICAL PERFORMANCE
Superior voltage regulation and minimal ripple/noise ensures the highest quality and most consistent power for your PC, keeping your system stable and unlocking your motherboard’s true potential for overclocking.
80 PLUS TITANIUM CERTIFIED
The AX850 delivers power at up to 94% efficiency, lowering energy consumption, noise, temperatures, and your power bill.
100% JAPANESE 105°C CAPACITORS
By using high-end electrolytic capacitors, AX Series power supplies offer the unwavering power and long-term reliability you demand from a CORSAIR power supply.
ZERO RPM FAN MODE
The AX Series’ cooling fan doesn’t spin until you need it, for near-silent operation at low and medium loads.
135mm COOLING FAN
Immensely powerful airflow, low noise operation and longer life thanks to a true Fluid Dynamic Bearing (FDB) fan.
FULLY MODULAR CABLES
Use only the cables you need for quick and easy installation, with stylish sleeving to simplify routing and cable management. Store your unused cables in the included cable bag.
CUSTOMIZABLE MAGNETIC SIDE LABELS
Customize your PSU to match your system’s style with three included magnetic side labels in red, white or blue.
TEN-YEAR WARRANTY
CORSAIR provides a ten-year warranty on all AX Series power supplies; your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.
Specification :
| Model | CP-9020151-UK |
| ATX Connector | 1 |
| Adjustable Single/Multi 12V Rail | NO |
| ATX12V Version | v2.4 |
| Continuous output rated temperature C | 50°C |
| Continuous power W | 850 Watts |
| Fan bearing technology | FDB Bearing |
| Fan size mm | 135mm |
| MTBF hours | 100,000 hours |
| Multi-GPU ready | YES |
| Warranty | 10 Years |
| 80 PLUS Efficiency | Titanium |
| PSU Form Factor | ATX |
| Zero RPM Mode | YES |
| iCUE Compatibility | NO |
| Cable Type | Sleeved, All Black |
| Dimensions | 170mm x 86mm x 150mm |
| EPS12V Connector | 2 |
| EPS12V Version | v2.92 |
| Floppy Connector | 1 |
| Intel C6C7 sleep state compatible | YES |
| Modular | Fully |
| PCIe Connector | 6 |
| SATA Connector | 16 |
| PATA Connector | 6 |
| Modern Standby Compatible | NO |
| Warranty | 10 Years |
