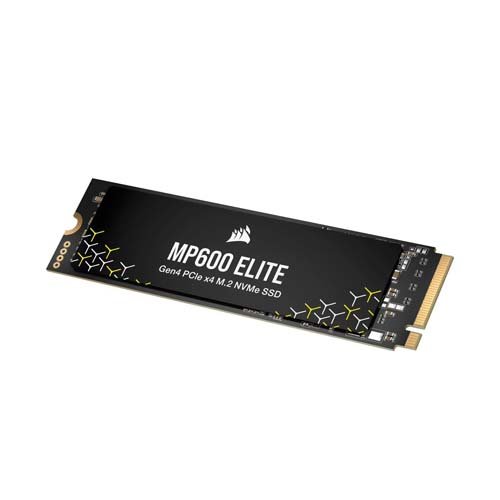

Corsair MP600 Elite M.2 2280 4TB PCI-Express 4.0 Internal Solid State Drive (SSD) CSSD-F4000GBMP600ENH
Overview :
Extreme Gen4 Storage Performance: A PCIe Gen4 x4 controller delivers up to 7,000MB/sec sequential read and 6,500MB/sec sequential write speeds*, for phenomenal read, write, and response times.
Your PC Made Faster: Load games, boot Windows, open and transfer files, all faster than ever.
High-Speed PCIe 4.0 x4 NVMe 1.4 M.2 Interface: Using PCIe Gen4 technology for maximum bandwidth, the MP600 ELITE delivers impressive storage performance.
High-Density 3D TLC NAND: Provides the ideal mix of performance and endurance to keep your drive performing at its best for years
Outstanding Endurance: Rated for up to 1,200TB Written, the MP600 ELITE’s longevity ensures that it reliably stores your data through many years of use.
Compact M.2 2280 Form-Factor: Fits directly into most motherboards and laptops, with no heatsink attached for maximum compatibility.
Microsoft DirectStorage Support: Enables the MP600 ELITE to communicate directly with your graphics card when playing compatible games, for unbelievably fast load times.
Backward Compatible**: Support for PCIe Gen3 systems.
CORSAIR SSD Toolbox Software: Enables advanced drive controls from your desktop including secure erase and firmware updates.
Comprehensive Five-Year Warranty: Long-term reliability and industry-leading customer support for peace of mind.
Specification :
| Brand | Corsair |
| Series | MP600 Elite |
| Model | CSSD-F4000GBMP600ENH |
| Part Number | CSSD-F4000GBMP600ENH |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Details | |
| Form Factor | M.2 2280 |
| Capacity | 4TB |
| Memory Components | 3D TLC |
| Interface | PCI-Express 4.0 x4, NVMe 1.4 |
| Protocol | NVMe 1.4 |
| Controller | PS5027-E27T |
| Encryption | AES 256-bit encryption |
| Performance | |
| Max Sequential Read | Up to 7000 MBps |
| Max Sequential Write | Up to 6500 MBps |
| 4KB Random Read | Up to 1,000,000 IOPS |
| 4KB Random Write | Up to 1,200,000 IOPS |
| Terabytes Written (TBW) | 2400TB |
| MTBF | 1,500,000 hours |
| HeatSink | without HeatSink |
| Environmental | |
| Power Consumption (Idle) | < 50 mW |
| Power Consumption (Active) | Active Read: 5.7W |
| Active Write: 8.5W | |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | 40°C 90% RH |
| Max Shock Resistance | 1500G |
| Max Vibration Resistance | 20Hz~80Hz/1.52mm |
| Dimensions & Weight | |
| Height | 3.00mm |
| Width | 22.00mm |
| Depth | 80.00mm |
| Weight | 8.2g |
