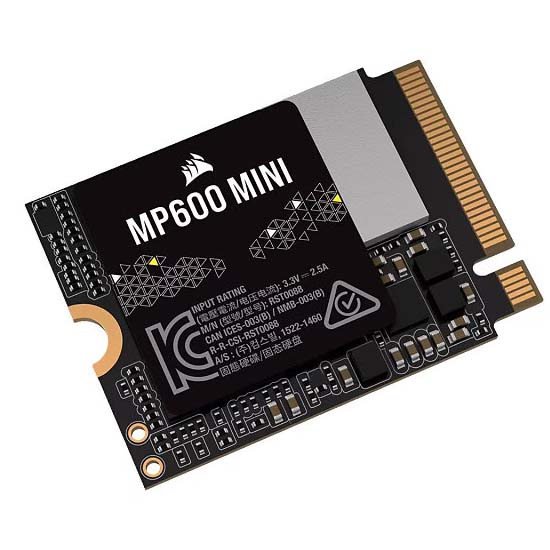

Corsair MP600 MN M.2 2230 1TB PCI-Express 4.0 x4 3D TLC Internal Solid State Drive SSD CSSD-F1000GBMP600MNR2
Overview :
The CORSAIR MP600 Mini solid state drive is a high-performance storage solution designed to meet the needs of demanding applications. With a 1 TB capacity, it offers ample space for large files and applications. The drive utilizes PCI Express 4.0 x4 (NVMe) interface, providing fast data transfer rates of up to 4800 MBps for both reading and writing tasks. It incorporates 3D NAND technology, which enhances performance and reliability, while the 256-bit AES encryption ensures your data is protected. Additionally, the MP600 Mini supports S.M.A.R.T health information, allowing for proactive maintenance and longevity. Whether for gaming, professional work, or general use, this solid state drive offers a combination of speed, security, and durability.
Specification :
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 93% |
| Vibration Tolerance (non-operating) | 20 g @ 80-2000 Hz |
General
| Device Type | Solid state drive – internal |
| Capacity | 1 TB |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2230 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | NVM Express (NVMe), NVMe standard Self-Monitoring and Reporting Technology ((SMART), 256-bit AES |
| Width | 0.9 in |
| Depth | 1.2 in |
| Weight | 0.99 oz |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) – M.2 Card |
| Compatible Bay | M.2 2230 |
Performance
| SSD Endurance | 600 TB |
| Internal Data Rate | 7000 MBps (read) / 6200 MBps (write) |
| Maximum 4KB Random Write | 1000000 IOPS |
| Maximum 4KB Random Read | 1000000 IOPS |
Power
| Voltage Required | 3.3 – 5 V |
| Power Consumption | 5 Watt (average) |
