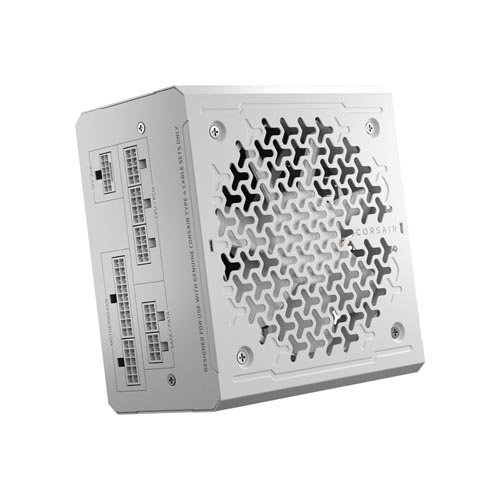

CORSAIR RM850e 850W Gold Modular Power Supply CP-9020293-IN
Overview :
Simplify your PC build with the RM850e 850W Gold Modular Power Supply from Corsair, which provides quiet, reliable power and allows users to connect only the cables your system requires. It features Cybernetics Gold efficiency, ATX 3.1 and PCIe 5.1 compliance with the inclusion of a native 12V-2×6 GPU power connector and cable, and an array of PCIe 8-pin power connectors, allowing you to keep up with today’s demanding hardware. Furthermore, industrial-grade 105°C capacitors deliver improved electrical performance, and a 140mm casing that will fit in most modern cases.
Fully Modular PSU
Reliable and efficient, this low-noise power supply has fully modular cabling so you only have to connect the cables your system build needs.
Intel ATX 3.1 Certified
Compliant with the ATX 3.1 power standard, it supports the PCIe 5.1 platform and withstands 2x transient power excursions from the GPU.
Keeps Quiet
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
105°C Rated Capacitors
Delivers steady, reliable power and dependable electrical performance.
Modern Standby Compatible
Extremely fast wake-from-sleep times and better low-load efficiency.
Cybenetics Gold-Certified
Steady power output at up to 90% efficiency for lower power consumption, less noise, and cooler temperatures.
Zero rpm Fan Mode
For near-silent operation at lower loads.
Cybenetics “A” Noise Rating
Professionally tested across a wide range of loads and rated for extremely low noise.
The Right Fit
Compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
Resonant LLC Topology with DC-to-DC Conversion
Provides clean, consistent power and ensures better energy-efficiency across a wide range of loads.
Native 12V-2×6 GPU Power Connector
Supports the latest Nvidia 40 Series graphics cards without having to use clumsy, bulky adapters.
Specification :
| Connectivity | |
| Total Connectors | 1x 24-Pin ATX Motherboard |
| 2x 4+4-Pin EPS CPU | |
| 2x 6+2-Pin PCIe | |
| 1x 16-Pin PCIe (12VHPWR) | |
| 2x 6+2-Pin PCIe | |
| 4x 15-Pin SATA | |
| 4x 6-Pin SATA / Peripheral | |
| Cable Design | Modular, Embossed |
| PCIe Connector Distances | 25.6″ / 650 mm |
| SATA Connector Distances | 29.5″ / 750 mm |
| Peripheral Connector Distances | 29.5″ / 750 mm |
| ATX Connector Distance | 24″ / 610 mm |
| EPS Connector Distances | 29.5″ / 750 mm |
| Electrical | |
| Total Wattage | 850 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 850 W |
| Max Load for +12 V | 70.8 A |
| Combined Power for +3.3/+5 V | 110 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 5.0 to 10.0 A |
| General | |
| Efficiency Rating | 80 PLUS Gold |
| Active Power Factor Correction | 90% |
| Cooling | |
| Fan Size | 120 mm |
| Bearing Type | Rifle |
| Physical | |
| Form Factor | ATX |
| Compliance | ATX v3.1 |
| Packaging Info | |
| Package Weight | 6.4 lb |
| Box Dimensions (LxWxH) | 11.4 x 7.3 x 5.1″ |
