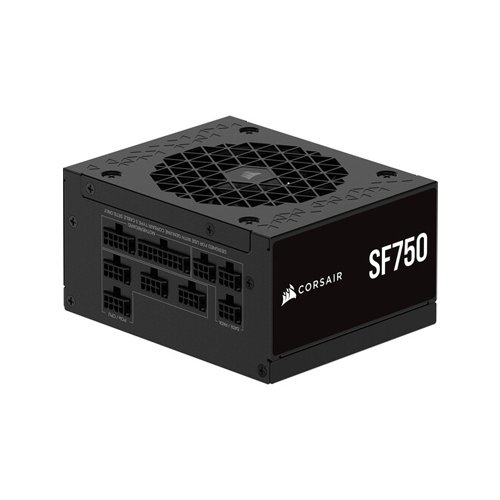

CORSAIR SF750 80 PLUS Platinum Fully Modular 750W SFX Power Supply (Black) CP-9020284-IN
Overview :
System builders can easily deliver ample power to their builds within small cases with the Corsair SF750 80 PLUS Platinum Fully Modular 750W SFX Power Supply. Designed for smaller systems, the SF750 makes it possible to drive electrical performance to your gaming focused components while optimizing internal space.
Sporting a small design, the SF750 can deliver up to 750W of power to your system, ensuring your components are properly powered thanks to the single +12V rail. With ATX 3.1 compliance, the SF750 is compatible with variety of PCIe 5.0 platforms and includes a cable which gives you a single-cable solution designed for 40 series NVIDIA graphics cards. Additionally, you get two PCIe 6+2-pin connectors, four right-angle SATA connectors, four straight SATA connectors, and three PATA/Molex connectors. Modular design allows you to pick and choose exactly which cables you need, optimizing your cable routing as well as airflow within your case.
- 80 PLUS Platinum rating ensures optimal throughput, giving you up to 92 and 89% efficiency at half and full loads, respectively
- Flexible cabling takes up less space within your case for greater airflow and easy management
- 92mm PWM cooling fan keeps the SF750 cool and incorporates a Zero RPM Mode which reduces fan speed during low operating loads
- 105°C rated Japanese capacitors deliver enhanced power with extra reliability
- While designed for smaller cases, an included SFX-to-ATX bracket allows you to install the SF750 into large cases
Specification :
| Connectivity | |
| Total Connectors | 1x 24-Pin ATX Motherboard |
| 2x 4+4-Pin EPS CPU | |
| 2x 6+2-Pin PCIe | |
| 8x 15-Pin SATA | |
| 3x 4-Pin Peripheral / Molex | |
| Cable Design | Modular, Sleeved |
| PCIe Connector Distances | 15.7″ / 400 mm |
| SATA Connector Distances | 17.5″ / 445 mm |
| Peripheral Connector Distances | 13″ / 330 mm |
| Floppy Connector Distances | 13″ / 330 mm |
| ATX Connector Distance | 11.8″ / 300 mm |
| EPS Connector Distances | 15.7″ / 400 mm |
| Electrical | |
| Total Wattage | 750 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 750 W |
| Max Load for +12 V | 65.5 A |
| Combined Power for +3.3/+5 V | 130 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Peak Power | 750 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| General | |
| Efficiency Rating | 80 PLUS Platinum |
| Active Power Factor Correction | No |
| Efficiency | 90% at 20% Load |
| 92% at 50% Load | |
| 89% at 100% Load | |
| Cooling | |
| Fan Size | 92 mm |
| Physical | |
| Form Factor | SFX |
| Compliance | ATX 12 V v3.0 |
| Operating Conditions | Up to 122°F / 50°C |
| Dimensions | 4.9 x 3.9 x 2.5″ / 125 x 100 x 63.5 mm |
| Weight | 2.09 lb / 0.95 kg |
| Packaging Info | |
| Package Weight | 4.715 lb |
| Box Dimensions (LxWxH) | 12.8 x 6.3 x 4.1″ |
