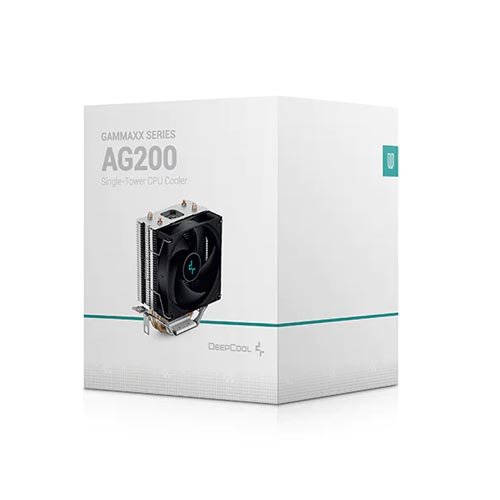

DeepCool AG200 Compact Single-Tower CPU Cooler R-AG200-BKNNMN-G
Overview :
EFFICIENT COOLING POWER
Two direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.
NEW FAMILY APPEARANCE
The AG200 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction.
EASY INSTALLATION
Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.
Specification :
| Application For | Intel |
| LGA1700/1200/1151/1150/1155 | |
| AMD | |
| AM5/AM4 | |
| Product Dimensions | 119×77×133 mm |
| Heatsink Dimensions | 94×57×133 mm |
| Net Weight | 304g |
| Heatpipe | Ø6 mm×2 pcs |
| Fan Dimensions | 92×92×25 mm |
| Fan Speed | 500~3050 RPM±10% |
| Fan Airflow | 36.75 CFM |
| Fan Air Pressure | 2.89 mmAq |
| Fan Noise | ≤30.5 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.13 A |
| Fan Power Consumption | 1.56 W |
| P/N | R-AG200-BKNNMN-G |
