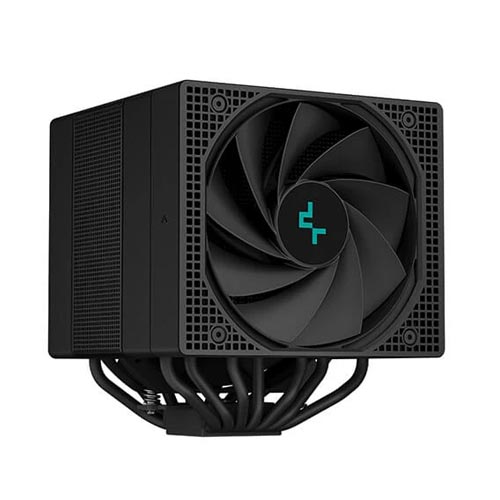

Deepcool Assassin IV Dual Tower CPU Air Cooler R-ASN4-BKNNMT-G
Overview :
The ASSASSIN returns with a new aesthetic and efficient cooling capacity. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN QUIET OR PERFORMANCE MODE, THE ASSASSIN IV IS THE OBVIOUS CHOICE
With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!
The ASSASSIN IV’s case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
Be Cool, Be Calm
A key factor in the ASSASSIN IV’s extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!
Exceptional by Design
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
Streamlined Installation
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Specification :
| Model | ASSASSIN IV |
| P/N | R-ASN4-BKNNMT-G |
| Application For | Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 |
| AMD: AM5/AM4 | |
| Product Dimensions | 144×147×164 mm(L×W×H) |
| Heatsink Dimensions | 140×110×160 mm(L×W×H) |
| Net Weight | 1575 g |
| Heatpipe | Ø6 mm×7 pcs |
| Fan Dimensions | 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H) |
| Fan Speed (Performance Mode) | 500~1700 RPM±10% |
| Fan Airflow (Performance Mode) | 79.1 CFM / 58.06 CFM |
| Fan Air Pressure (Performance Mode) | 2.44 mmAq / 2.1 mmAq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1350 RPM±10% |
| Fan Airflow (Quiet Mode) | 63.76 CFM / 46.75 CFM |
| Fan Air Pressure (Quiet Mode) | 1.58 mmAq / 1.35 mmAq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Motor Type | 6-Pole Fan Motor |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.1 A / 0.07 A |
| Fan Power Consumption | 1.2 W / 0.84 W |
| Rated Voltage | 12 VDC |
| Power Consumption(Performance Mode) | 2.88 W |
| Power Consumption(Quiet Mode) | 1.56 W |
| Warranty | 5 Years |
