Dell 34 inch AW3423DW AW Series Monitor
Overview :
Bring Virtual Worlds to Life with the Clarity of QD OLED

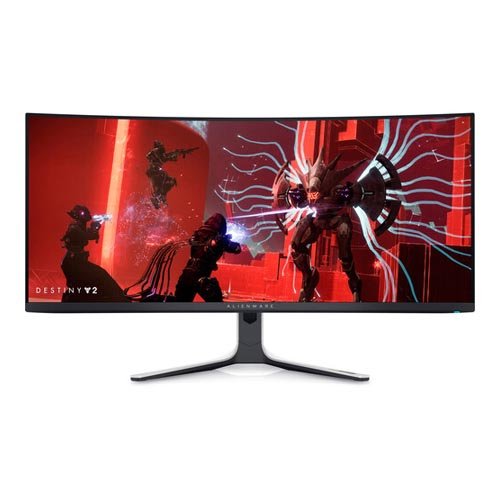

Animate your favorite titles with the AW3423DW 34.2″ 1440p HDR 175 Hz Curved Gaming Monitor in lunar light from Alienware. Built to deliver a realistic gaming experience, this monitor utilizes a 34.2″ 1800R curved Quantum Dot OLED panel with a 3440 x 1440 resolution for optimal immersion. A 1,000,000:1 static contrast ratio, 149% sRGB and 99.3% DCI-P3 coverage, and 1.07 billion colors provide crisp and vibrant color for mesmerizing views.
Connect to hosts via a DisplayPort and two HDMI interfaces. An integrated hub is comprised of four USB-A 3.2 Gen 1 ports, including two with support for BC 1.2 protocols and up to 2A of power delivery.
Quantum Dot Display
The Quantum Dot display enables a slim panel design and delivers a superior color performance with a higher peak luminance and greater color gamut range compare to White OLED (WOLED). Additionally, this monitor features cinema-grade color coverage, wide 178° horizontal and vertical viewing angles, and a Delta E<2 factory calibration for accurate viewing right out of the box. A 1000 nits brightness, high contrast ratio, and VESA Display HDR True Black 400 certification ensure your favorite content comes to life.
Stutter-Free Speed
Take advantage of low latency and smooth tear-free gaming thanks to NVIDIA G-SYNC ULTIMATE certification. A blazing 0.1 ms (GtG) response time allows for quick in-game reactions to clinch victory. Additionally, refresh rates up to 175 Hz via DisplayPort or 100 Hz via HDMI minimize stutter for smoother action.
Arresting Design
Sporting an iconic new Legend 2.0 design, this monitor incorporates customizable stadium loop OLED AlienFX lighting. Keep your cool with 360° ventilation for better heat dissipation; conserve space and declutter your desk using integrated cable management. A centralized OSD joystick makes adjusting settings easier.
Creator Mode for Critical Color
Whether creating content or developing games, Creator Mode allows for precise color-critical performance. This OSD menu option allows you to choose between the native DCI-P3 and sRGB color spaces and adjust gamma settings for optimal color depending on your work needs.
This monitor also features Comfort View Plus, an always-on built-in low-blue-light screen technology that reduces blue light emissions without impacting color accuracy.
Engineered for Reliable Performance
The AW3423DW Gaming Monitor is engineered to avoid burn-in caused by items appearing onscreen for long periods of time.
USB 3.2 Gen 1
USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s and is synonymous with USB 3.1 Gen 1 and USB 3.0.
Specification :
| Display | |
| Size | 34.18″ |
| Screen Area | 31.5 x 13.3″ / 800.1 x 337.1 mm |
| Panel Type | Quantum Dot OLED |
| Curvature | 1800R |
| Touchscreen | No |
| Resolution | 3440 x 1440 |
| Aspect Ratio | 21:09 |
| Pixels Per Inch (ppi) | 110 ppi |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 1000 nits / cd/m2 (Peak) |
| 250 nits / cd/m2 (Sustained) | |
| Contrast Ratio | 1,000,000:1 |
| Refresh Rate | 175 Hz |
| Variable Refresh Technology | G-Sync |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | HDR10 |
| Color Gamut | 149% sRGB |
| 99.3% DCI-P3 | |
| Response Time | 0.1 ms (GtG) |
| Viewing Angle (H x V) | 178 x 178° |
| Dot Pitch | 0.23 x 0.23 mm |
| Inputs / Outputs | |
| Inputs/Outputs | 1 x DisplayPort 1.4 |
| 2 x HDMI 2.0 | |
| 1 x USB-B (USB 3.0 / 3.1/3.2 Gen 1) | |
| 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) | |
| 2 x 1/8″ / 3.5 mm Output | |
| HDCP Support | Yes, Version 2.2 |
| Built-In Speakers | None |
| Media Card Reader | None |
| Multi-Input Support (PIP/PBP) | None |
| Power | |
| Power Consumption | 42.3 W (Typical) |
| 200 W (Maximum) | |
| 0.5 W (Standby) | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3 A |
| Power Adapter Type | Internal |
| USB Power Delivery | Yes |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Certifications | RoHS |
| *as per Manufacturer | |
| Physical | |
| Height Adjustment | 4.3″ / 10.9 cm |
| Rotation Adjustment | None |
| Swivel Adjustment | 40° (-20 to 20°) |
| Tilt Adjustment | -5 to 21° |
| Max Arm Extension Length | None |
| Mounting-Hole Pattern | 100 x 100 mm |
| Lock Slot | Yes, Kensington |
| Dimensions (W x H x D) | 32.1 x 16.4 x 4.1″ / 81.5 x 41.6 x 10.4 cm (with Stand) |
| 3.2 x 1.4 x 0.5″ / 81.5 x 36.4 x 13.7 mm (without Stand) | |
| Weight | 22.86 lb / 10.37 kg (with Stand) |
| 15.26 lb / 6.92 kg (without Stand) | |
| Packaging Info | |
| Package Weight | 34.5 lb |
| Box Dimensions (LxWxH) | 37.5 x 19.25 x 11″ |
