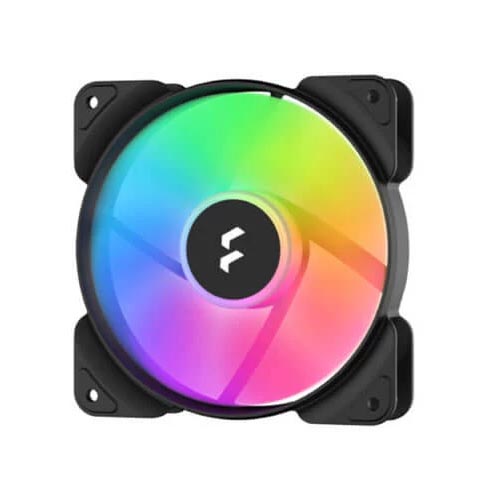

Fractal Design Aspect 12 Black 120mm RGB Cabinet Fan (Single Pack) FD-F-AS1-1204
Overview :
Aspect 12 RGB
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
- Less turbulence thanks to aerodynamic stator struts
- 6 individually addressable hub-mounted RGB LEDs
- Supports ASUS AURA, Gigabytes Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
In living color
Let your system shine with six individually addressable hub-mounted RGB LEDs
The aerodynamic stator struts decrease turbulence and noise caused by flowing air
The Aspect frame offers aesthetics without compromising on performance
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain Feature
Simplify cable management by using the Aspect chain feature for multiple units
Specification :
| Model | FD-F-AS1-1204 |
| Size | 120 x 120 x 25 mm |
| LED type | Addressable RGB |
| Bearing | Rifle |
| Rotational speed | 1200 RPM |
| Max airflow (CFM) | 32 CFM |
| Max pressure | 1.20 mm H2O |
| Fan max input current | 0.16 A |
| Minimum startup voltage | 7 V |
| LED rated current | 0.3 A |
| MTTF | 90.000 h |
| Cable length | 500 mm |
| Screw hole pattern | 105 x 105 mm |
| Power connector | 3-pin |
| Number of blades | 7 |
| Noise level | 18.3 dB(A) |
| Max airflow (m³/h) | 54.4 m³/h |
| Fan typical input power | 0.96 W |
| Fan input voltage | 12 V |
| LED rated voltage | 5 V |
| LED Rated input power | 1.5 W |
| Unit weight | 135 g |
| Cable type | Black ribbon (allows chaining) |
| Warranty | 3 Years |
