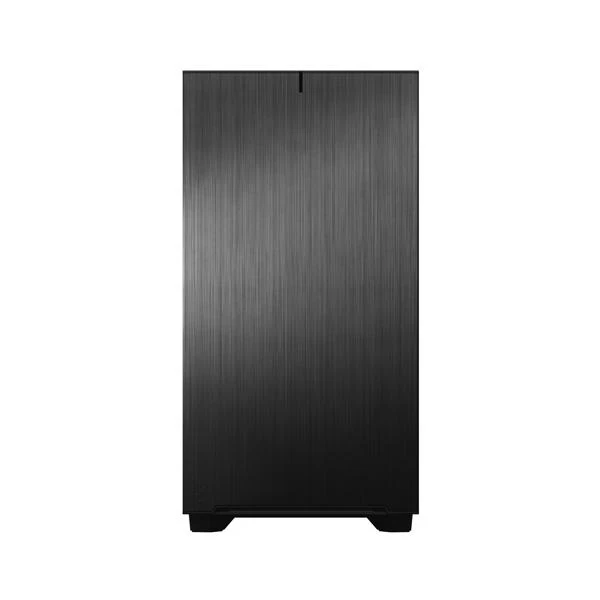

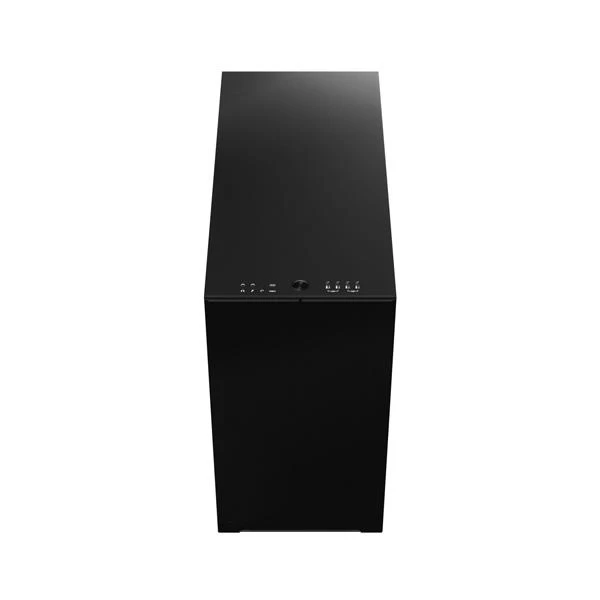

Fractal Design Define 7 Clear Tempered Glass Mid Tower Case Black-White FD-C-DEF7A-05
Overview :
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
pen and interchangeable
Swap in the ventilated panel to add three filtered fan positions;
remove the entire top to build and route with zero hindrance
Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
Open layout for massive headroom
You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base
Superlative storage
Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts
6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
2 dedicated SSD brackets included with 4 positions total
Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
Sturdy new HDD cage design with vibration damped trays
Versatile new Multibracket
The included Multibracket lets you convert
any unused fan position to an HDD, SSD or pump mount.
Technical Details
Brand : Inno3D
Model : FD-C-DEF7A-05
3.5″/2.5″ Universal drive brackets : 6 included, 14 positions total
Dedicated 2.5″ drive brackets : 2 trays included, 4 positions total
5.25” drive mounts : 1
Expansion slots : 7 2
Front ports : 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts : 9 x 120/140 mm
Front fan : 3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan : 3 x 120/140 mm
Rear fan : 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan : 2 x 120/140 mm
Dust filters : Top, 2 x front, full length bottom
Fixed velcro straps : Yes
Cable routing grommets : Yes
Captive thumbscrews : HDD brackets, SSD brackets, PSU bracket
Left side panel : Tempered glass
Right side panel : Industrial sound-damped steel
Compatibility
Motherboard compatibility : E-ATX (max 285 mm) / ATX / mATX / mITX
Power supply type : ATX
PSU max length : 250 mm (with HDD cage installed)
GPU max length : Storage layout: 315 mm – Open layout: 491 mm (467 mm w/ front fan)
CPU cooler max height : 185 mm
Front radiator : Up to 360/280 mm
Top radiator : Up to 360/420 mm
Rear radiator : 120 mm
Bottom radiator : Up to 240/280 mm
Cable routing space : 30 mm
Dimensions
Case dimensions (LxWxH) : 547 x 240 x 475 mm
Case dimensions w/o feet/protrusions/screws : 533 x 240 x 451 mm
Package dimensions (LxWxH) : 558 x 363 x 641 mm
Net weight : 13.45 kg
Package weight : 15.94 kg
Package contents
Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6)
