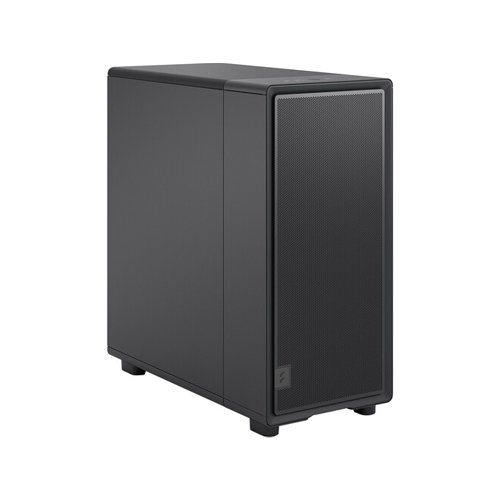

Fractal Design Epoch Mid-Tower Black Cabinet FD-C-EPO1A-01
Overview :
Optimize the performance of your build with the Epoch Mid-Tower Case from Fractal Design. Designed for highly efficient airflow, this steel mid-tower chassis features a mesh front panel with three powerful Momentum 12 fans.
Install an ATX, mATX, or mini-ITX motherboard. The spacious interior also supports up to seven expansion cards, including a graphics card up to 14.6″ long. For storage, the included brackets allow you to install up to two 3.5″ hard drives and one 2.5″ drive. Two additional 2.5″ drives may be installed onto the removable bracket behind the motherboard tray. An integrated cable channel helps to ensure a clean and organized build. The toolless design allows you to quickly and easily add or remove components.
High-Speed Connectivity
The front panel includes one USB-C port that supports up to 20 Gb/s connections while the two USB-A 3.2 Gen 1 ports work with 5 Gb/s compatible devices. The 3.5mm audio jack allows you to connect your preferred headset.
Included Fans
Featuring fluid dynamic bearings and Liquid Crystal Polymer blades, the Momentum 12 fans provide efficient and quiet cooling performance.
Efficient Cooling
Up to six 120mm or four 140mm fans in total may be installed across the front, top, and rear panels.
Radiator Support
Up to a 360mm radiator may be installed on the front panel with support for a 240mm radiator on the top. A 120mm radiator may be installed on the rear panel.
Specification :
| Compatibility | |
| Motherboard Support | ATX, Mini-ATX, Mini-ITX |
| External Drive Bays | No |
| Internal Drive Bays | 2x 3.5″ |
| and | |
| 1x 2.5″ | |
| Drive Mounting (Non-Bay) | Motherboard Tray |
| 2x 2.5″ | |
| Expansion Slots | 7x Full Height Horizontal |
| Maximum GPU Length | 14.6″ / 372 mm |
| CPU Cooler Height | 6.7″ / 170 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 10.0″ / 255 mm |
| PSU Mounting Location | Bottom |
| Cooling | |
| Fan Mounting | Front |
| 3x 120/140 mm | |
| Top | |
| 2x 120/140 mm | |
| Rear | |
| 1x 120 mm | |
| Fans Included | Front: |
| 3x 120 mm Non-LED (350 to 2200 rpm, 31.3 dBA) | |
| Maximum Radiator Size | Front: |
| 360 mm | |
| Top: | |
| 240 mm | |
| Rear: | |
| 120 mm | |
| Fan Controller Included | No |
| Filters Included | Yes: Bottom |
| Inputs / Outputs | |
| I/O | 1x USB-C (USB 3.2 Gen 2×2) |
| 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) | |
| 1x 3.5 mm Input/Output | |
| Physical | |
| Windowed Panel | No |
| Color | Black |
| Material | Steel |
| Certifications | No |
| Built-In Lighting | No |
| Tool-Less Design | Yes |
| Security | No |
| Cable Management Space | Yes: 1.2″ / 30 mm |
| Dimensions (W x H x D) | 17.5 x 8.5 x 17.9″ / 443.3 x 215 x 455.3 mm |
| Weight | 16.95 lb / 7.69 kg |
| Packaging Info | |
| Package Weight | 20.36 lb |
| Box Dimensions (LxWxH) | 22.25 x 22 x 13″ |
