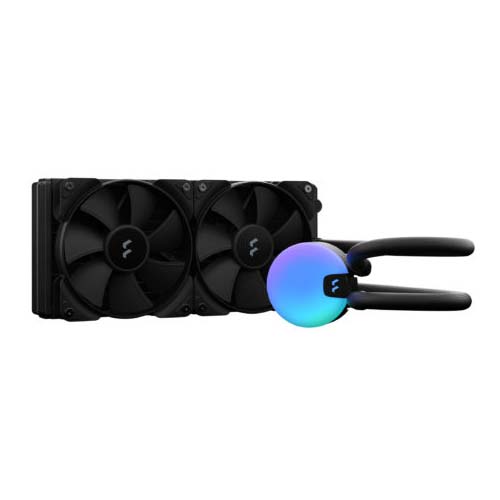

Fractal Design Lumen S24 240mm Liquid Cooler FD-W-L1-S2401
Overview :
Customize your water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen is an attractive proposition for starting and seasoned builders alike.
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Pre-applied thermal paste ensures an easy installation
- Supports the most common sockets for both Intel and AMD
- Aspect fans for low turbulence and chaining support
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
- Current certifications include Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
- Low-permeability rubber tubes with braided nylon sleeves
Specification :
| General specifications | |
| Sockets supported (Intel) | LGA 1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| Sockets supported (AMD) | AM4/FM2 /FM2/ FM1/AM3 /AM3/AM2 /AM2 |
| Cold plate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree Elbow |
| Fittings, radiator side | Barbed fitting |
| Block height | 43mm |
| Block measurements (with fittings) | 79 x 67 mm |
| Block diameter (main block body) | 67 mm |
| Fan specifications | |
| Fan type | Aspect 12 PWM |
| Rotational speed | 500–2000 RPM |
| Fan bearing | Rifle bearings |
| Fan PWM control | Yes |
| Fan acoustical noise | <10–33.2 dBA |
| Fan maximum air flow | 13-56 CFM |
| Fan maximum static pressure | 0.230–2.34 mm H2O |
| Fan input voltage | 12V |
| Fan maximum input current | 0.37A |
| Fan MTTF | 90,000 hours |
| Pump specifications | |
| Rotational speed | 4000 ± 10% RPM |
| Bearing type | Ceramic |
| PWM control | No |
| Acoustical noise (full speed) | 22 dBA |
| Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
| Input voltage | 12V DC |
| Input current (without fans) | 0.34 A |
| MTTF | 50 000 hours |
| Radiator specifications | |
| Radiator dimensions | 272 x 120 x 27 mm |
| Radiator housing material | Aluminum |
| Radiator fin material | Aluminum |
| Radiator fan screw threads | 6-32 |
| Other | |
| Package contents | CPU Cooler Assembly, 2x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable |
| Package dimensions | 332 x 205 x 137 mm |
| Package weight | 1.77kg |
| Product Code | FD-W-L1-S2401 |
