Fractal Design Lumen S36 RGB V2 360mm Liquid CPU Cooler With Triple Fans FD-W-L1-S3612
Overview :
Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
- • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- • Six ARGB LEDs are yours to command via your motherboard or controller
- • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- • Compatible with LGA 1700 and AM5
SPECIFICATIONS
| Brand | Fractal Design |
| Series | Lumen V2 Series |
| Model | FD-W-L1-S3612 |
| Fan Specifications | |
| Fan Type | 3x Aspect 12 RGB PWM Fans |
| Rotational Speed | 500 – 2000 RPM |
| Bearing Type | Rifle Bearing |
| PWM Control | Yes |
| Acoustic Noise | <10 – 33.2 dBA |
| Maximum Airflow | 13 – 56 CFM |
| Maximum Static Pressure | 0.230 – 2.34mm H2O |
| Input Voltage | 12V |
| Maximum Input Current | 0.37A |
| MBTF | 90,000 Hours |
| Pump Specifications | |
| Rotational Speed | 4000 ± 10% RPM |
| Bearing Type | Ceramic |
| PWM Control | No |
| Acoustic Noise | 22 dBA |
| Maximum Pressure | 1.8mm H2O/ 17.6 kPa / 2.5 PSI |
| Input Voltage | 12V DC |
| Input Current | 0.34 A |
| MTTF | 50 000 Hours |
| Radiator Specifications | |
| Housing Material | Aluminium |
| Fin Material | Aluminium |
| Fan Screw Thread | UNC 6-32 |
| Dimensions | 392 x 120 x 27mm (L x W x H) |
| General | |
| Cold Plate Material | Copper |
| Thermal Paste | Pre-Applied |
| Tube Length | 400mm |
| Tube Material | Low-Permeability Rubber Tubes With Braided Nylon Sleeves |
| Fittings, Block Side | Articulating 90-Degree Elbow |
| Fittings, Radiator Side | Barbed Fittings |
| Block height | 43mm |
| Block measurements (With Fittings) | 79 x 67mm |
| Sockets Supported (Intel) | LGA 1700/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| Sockets Supported (AMD) | AM5/AM4/FM2 /FM2/ FM1/AM3 /AM3/AM2 /AM2 |
| Block Diameter (Main Block Body) | 67mm |
| Features | Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma |
| Supports The Most Common Sockets For Both Intel and AMD | |
| Thermal paste Is Pre-Applied To Ensure a Proper And Pain-Free Installation | |
| Articulating Elbow Fittings Make Tubes Easier To Route And Reduces Tension On The Cold Plate Housing | |
| Duality Design Provides Both a Stealthy And Illuminated Look, Controlled From Your Motherboard RGB UI | |
| Six ARGB LEDs Are Yours To Command Via Your Motherboard Or Controller | |
| The Removable Top Can Be Turned At 90-Degree Intervals, Making The Logotype Horizontal Independent Of The Mounting Orientation | |
| Low-Permeability Rubber Tubes With Braided Nylon Sleeves | |

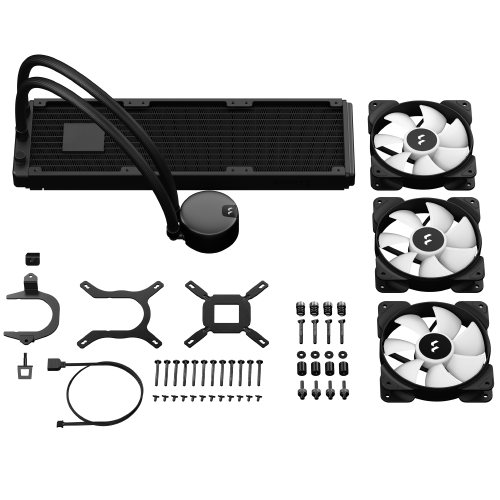

| Package Content | Lumen S36 V2 RGB System |
| 3x Aspect 12 RGB PWM Fans | |
| User Manual | |
| Intel Mounting Kit | |
| AMD Mounting Kit | |
| 5V ARGB Cable | |
| Package Dimensions | 448 x 205 x 137mm (L x W x H) |
| Package Weight | 2.20Kg |
| Warranty Information | |
| Warranty | 5 Year Warranty |
