Fractal Design Meshify 2 Compact ATX Mid-Tower Gaming Cabinet FD-C-MES2C-01
Overview :
Meshify 2 Compact

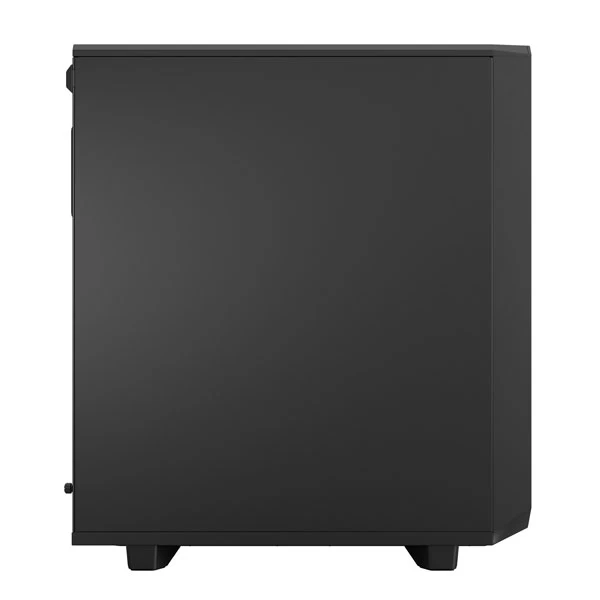

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

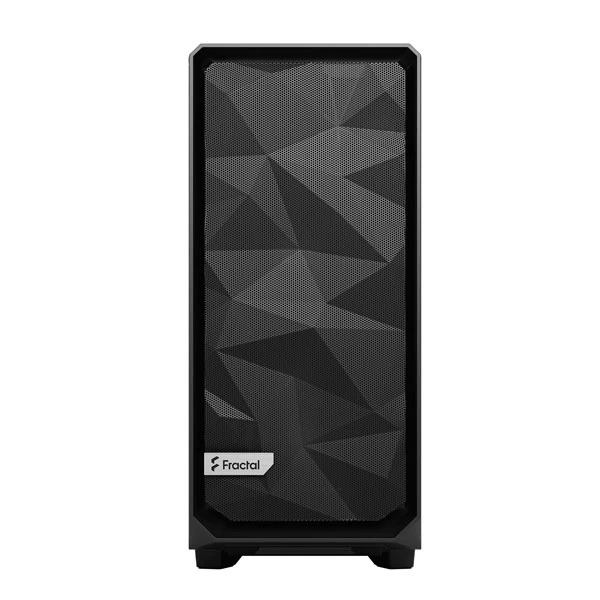

• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
• Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
Removable front filter
New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
New front nylon filter that can be removed for increased airflow
Robust cooling
Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm

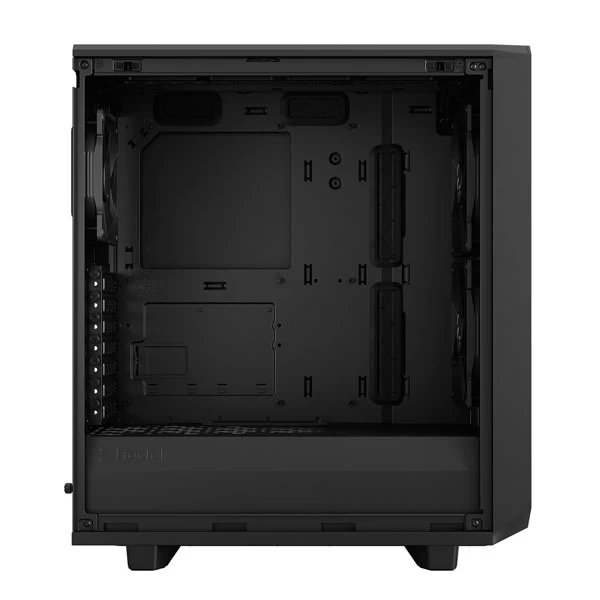

Open interior layout creates a smooth airflow path from intake to exhaust
Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
Fully featured
Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
Improved cable routing with three integrated cable alignment clips and six velcro straps
Top priority access
The fully removable top panel opens to provide excellent interior access
Technical Details
Brand : Fractal Design
Model : FD-C-MES2C-01
Specifications
3.5″/2.5″ Universal drive mounts : 2 (included)
Dedicated 2.5″ drive mounts : 4 (2 included)
Expansion slots : 7
Front interface : 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts : 7x 120 or 4x 140 mm and 2x 120 mm
Front fan : 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)
Top fan : 2x 120/140 mm
Rear fan : 1x 120 mm, (1x Dynamic X2 GP-12 included)
Bottom fan : 1x 120 mm (requires removal of HDD cage)
Dust filters : Top, front and bottom
Fixed velcro straps : Yes
Cable routing grommets : Yes
Captive thumbscrews : HDD, SSD and PSU brackets
Left side panel : Steel
Right side panel : Steel
Motherboard compatibility : ATX / mATX / Mini-ITX
Case dimensions (LxWxH) : 424 x 210 x 475 mm
Net weight : 7.7 kg
