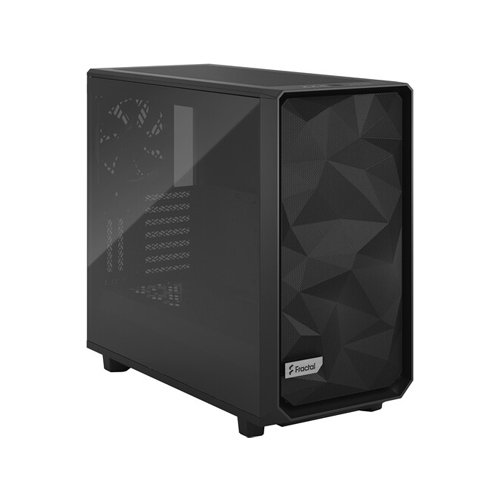

Fractal Design Meshify 2 Mid-Tower (Black with Light Tempered Glass) Cabinet FD-C-MES2A-03
Overview :
Bring big potential to your mid-sized build with the Meshify 2 Mid-Tower Case in black with light tempered glass from Fractal Design. Incorporating a flexible design, the Meshify 2 features an open layout and room for storage drives or increased cooling capabilities. Install 2.5 or 3.5″ drives in six bays. A Multibracket also allows for flexible installation of a seventh 2.5 or 3.5″ drive, and two drive brackets mount 2.5″ drives behind the motherboard tray or on top of the PSU shroud. Want more cooling? The Meshify 2 comes with three 140mm fans preinstalled, and room for up to 9 total fans. Liquid cooling is also supported, with radiators up to 420, 360, 280, and 120mm supported at the top, front, bottom, and rear of the case.
The Meshify 2 supports ATX, micro-ATX and mini-ITX boards, as well as E-ATX boards up to 11.22″. Install adapter cards using two vertical and seven horizontal expansion slots. GPUs up to 19.33″ are supported; if a front fan is installed or if the case is being used in Storage Layout, GPU length is respectively limited to 18.39 and 12.40″. CPU coolers up to 7.28″ are also supported, as are PSUs up to 9.84″ when a drive cage is installed. Boasting a steel frame and a windowed left-side panel made of light-tinted tempered glass, this case incorporates latching mechanisms for easy, toolless access. A front I/O panel sports a USB 3.1 Gen 2 Type-C and two USB 3.1 Gen 1 Type-A ports, along with 3.5mm audio input and output ports.
Key Features
Angular mesh design provides filtered airflow
Adaptable dual-layout interior easily accommodates large motherboards up to and including 11.22″ E-ATX boards
Support for radiators up to 360mm in front, 420mm on top, or 280mm at the bottom in the default Open Layout
Add an optional 8 drive trays, 2 2.5″ brackets, and 2 Multibrackets for a total of 21 drives in Storage Layout
Chassis opens up to fully expose the case interior on three sides for unhindered installation and cable routing
Front nylon filter can be removed for increased airflow
Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10 Gb/s
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
Outstanding cooling capacity with a total of nine 120 or 140mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
Detachable PSU cable shield and integrated cable guides with touch fastener straps further simplify cable management behind the board
Versatile Multibracket that converts any unused fan position to a 2.5 or 3.5″ drive, or pump mount
Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access
Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
Toolless top-latching side panels allow quick access while preventing accidental drops
Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Specification :
| Compatibility | |
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX |
| External Drive Bays | No |
| Internal Drive Bays | 7x 2.5/3.5″ |
| Drive Mounting (Non-Bay) | Motherboard Tray |
| 2x 2.5″ | |
| Expansion Slots | 7x Full Height Horizontal + 2x Vertical |
| Maximum GPU Length | 19.3″ / 491 mm |
| CPU Cooler Height | 7.3″ / 185 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 9.8″ / 250 mm |
| PSU Mounting Location | Bottom |
| Cooling | |
| Fan Mounting | Bottom |
| 2x 120 mm | |
| or | |
| 2x 140 mm | |
| Front | |
| 3x 120/140 mm | |
| Rear | |
| 1x 120/140 mm | |
| Top | |
| 3x 120/140 mm | |
| Fans Included | Front: |
| 2x 140 mm Non-LED (1000 rpm) | |
| Rear: | |
| 1x 140 mm Non-LED (1000 rpm) | |
| Maximum Radiator Size | Bottom: |
| 280 mm | |
| Front: | |
| 360 mm | |
| Rear: | |
| 120 mm | |
| Top: | |
| 420 mm | |
| Fan Controller Included | Yes |
| Filters Included | Yes: Bottom, Front, Top |
| Inputs / Outputs | |
| I/O | 1x USB-C (USB 3.1/3.2 Gen 2) |
| 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) | |
| 1x 3.5 mm Input | |
| 1x 3.5 mm Output | |
| Physical | |
| Windowed Panel | Yes |
| Color | Black |
| Material | Tempered Glass, Steel |
| Built-In Lighting | No |
| Tool-Less Design | Yes: Thumbscrews |
| Security | No |
| Cable Management Space | Yes: 1.2″ / 30 mm |
| Dimensions (W x H x D) | 9.4 x 18.7 x 21.3″ / 240 x 474 x 542 mm |
| Weight | 23.1 lb / 10.5 kg |
| Packaging Info | |
| Package Weight | 29 lb |
| Box Dimensions (LxWxH) | 25 x 21 x 13″ |
