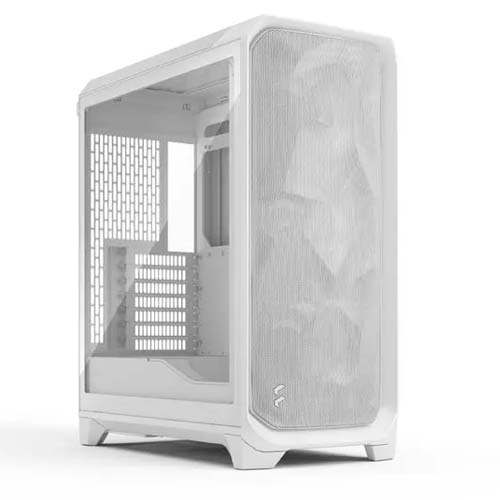

Fractal Design Meshify 3 Clear TG Side Panel ATX Mid Tower Cabinet White FD-C-MES3A-04
Overview :
- Performance engineering with ample ventilation and air guide for improved GPU cooling
- Aerodynamic design expression featuring a sleek, rockface-inspired mesh front panel
- Space for graphics cards up to 349 mm in length and E-ATX motherboard compatibility
- Supports up to 280 mm top and 360 mm front rads with removable brackets for easy installation
- Includes three powerful Momentum 14 fans with LCP blades and true FDB bearings
- Enjoy a smooth building experience with tool-less removable brackets and panels
- Top I/O featuring a 20 Gbps USB-C port, two USB-A ports and a combined audio jack
- Clean interior layout with cable cover and new cable aligners for easy routing
Specification :
| Compatibility | ATX, E-ATX, Mini-ATX, Mini-ITX |
| External Drive Bays | No |
| Internal Drive Bays | No |
| Drive Mounting (Non-Bay) | Motherboard Tray 2x 3.5″ or 4x 2.5″ Bottom 2x 2.5″ |
| Expansion Slots | 7x Full Height |
| Maximum GPU Length | 13.7″ / 349 mm |
| CPU Cooler Height | 6.8″ / 173 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 7.1″ / 180 mm |
| PSU Mounting Location | Bottom |
| Fan Mounting | Front 3x 120 mm or 3x 140 mm Top 2x 120 mm or 2x 140 mm Rear 1x 120 mm |
| Fans Included | Front: 3x 140 mm Non-LED (Unspecified rpm) |
| Maximum Radiator Size | Front: 360 mm Top: 280 mm Rear: 120 mm |
| Fan Controlled Included | No |
| Filters Included | Yes, Bottom |
| I/O | 1x USB-C (USB 3.2 Gen 2×2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Windowed Panel | Yes |
| Colour | White |
| Materials | Steel, Tempered Glass |
| Certifications | No |
| Built-In Lighting | No |
| Tool-Less Design | Yes, Thumbscrews |
| Security | No |
| Cable Management Space | Yes, 1.4″ / 34.5 mm |
| Dimensions (WxHxD) | 9 x 20 x 17″ / 229 x 507 x 433 mm |
| Weight | 19.4 lb / 8.8 kg |
| Package Weight | 24.5 lb |
| Box Dimensions (LxWxH) | 23.5 x 21.5 x 13.5″ |
| Warranty | 1 Year |
