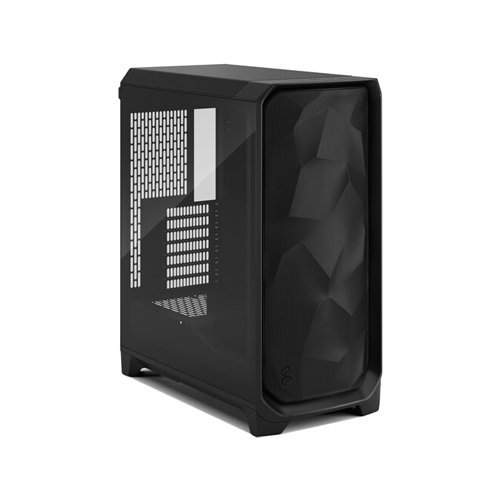

Fractal Design Meshify 3 Mid-Tower (Black with Tinted Tempered Glass) Cabinet FD-C-MES3A-02
Overview :
Optimize the performance of your build with the Meshify 3 Mid-Tower Case from Fractal Design. Designed for highly efficient airflow, this steel and glass mid-tower chassis features a rockface inspired mesh front panel with three powerful Momentum 14 fans.
Install an E-ATX, ATX, mATX, or mini-ITX motherboard. The interior also supports up to seven expansion, including an up 13.7″ long graphics card. For storage, up to two 3.5″ drives or four 2.5″ drives may be installed into brackets behind the motherboard tray. The bottom also includes two 2.5″ drive mounts. An integrated cable channel helps to ensure a clean and organized build. The toolless design allows you to quickly and easily add or remove components.
High-Speed Connectivity
The front panel includes one USB-C port that supports up to 20 Gb/s connections while the two USB-A 3.2 Gen 1 ports work with 5 Gb/s compatible devices. The 3.5mm audio jack allows you to connect your preferred headset.
Glass Panel
Showcase your hardware with the light-tinted tempered glass side panel.
Included Fans
Featuring fluid dynamic bearings and LCP blades, the Momentum 14 fans provide efficient and quiet cooling performance.
Efficient Cooling
Up to six 120mm or five 140mm fans in total may be installed across the front, top, and rear panels.
Radiator Support
Up to a 360mm radiator may be installed on the front panel with support for a 280mm radiator on the top. A 120mm radiator may be installed on the rear panel.
Specification :
| Compatibility | |
| Motherboard Support | ATX, E-ATX, Mini-ATX, Mini-ITX |
| External Drive Bays | No |
| Internal Drive Bays | No |
| Drive Mounting (Non-Bay) | Motherboard Tray |
| 2x 3.5″ | |
| or | |
| 4x 2.5″ | |
| Bottom | |
| 2x 2.5″ | |
| Expansion Slots | 7x Full Height Horizontal |
| Maximum GPU Length | 13.7″ / 349 mm |
| CPU Cooler Height | 6.8″ / 173 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 7.1″ / 180 mm |
| PSU Mounting Location | Bottom |
| Cooling | |
| Fan Mounting | Front |
| 3x 120 mm | |
| or | |
| 3x 140 mm | |
| Top | |
| 2x 120 mm | |
| or | |
| 2x 140 mm | |
| Rear | |
| 1x 120 mm | |
| Fans Included | Front: |
| 3x 140 mm Non-LED (Unspecified rpm) | |
| Maximum Radiator Size | Front: |
| 360 mm | |
| Top: | |
| 280 mm | |
| Rear: | |
| 120 mm | |
| Fan Controller Included | No |
| Filters Included | Yes: Bottom |
| Inputs / Outputs | |
| I/O | 1x USB-C (USB 3.2 Gen 2×2) |
| 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) | |
| Physical | |
| Windowed Panel | Yes |
| Color | Black |
| Material | Steel, Tempered Glass |
| Certifications | No |
| Built-In Lighting | No |
| Tool-Less Design | Yes: Thumbscrews |
| Security | No |
| Cable Management Space | Yes: 1.4″ / 34.5 mm |
| Dimensions (W x H x D) | 9 x 20 x 17″ / 229 x 507 x 433 mm |
| Weight | 19.4 lb / 8.8 kg |
| Packaging Info | |
| Package Weight | 23.29 lb |
| Box Dimensions (LxWxH) | 23.5 x 21.3 x 13.5″ |
