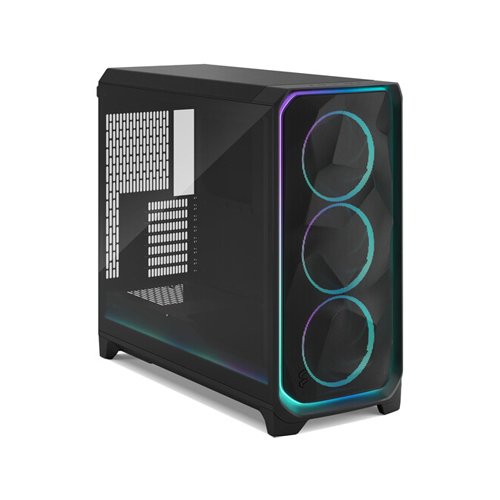

Fractal Design Meshify 3 XL Ambience Pro RGB Full Tower (Black with Tinted Tempered Glass) Cabinet FD-C-MES3X-03
Overview :
Optimize the performance of your build with cooling loops, multiple radiators, and more using the Meshify 3 XL Ambience Pro RGB Full Tower Case from Fractal Design. Designed for highly efficient airflow, this spacious steel and glass full tower chassis features a rockface inspired mesh front panel with three powerful Momentum 14 fans.
In addition to fitting E-ATX, ATX, mATX, or mini-ITX form factors, you can install large EE-ATX, SSI-CEB, and SSI-EEB motherboards into the chassis. The interior also supports up to seven expansion slots, including a graphics card up 20.2″ long. For storage, up to two 3.5″ drives or four 2.5″ drives may be installed into brackets behind the motherboard tray. The bottom also includes one 2.5″ drive mount. An integrated cable channel helps to ensure a clean and organized build. The toolless design allows you to quickly and easily add or remove components.
High-Speed Connectivity
The top panel includes one USB-C port that supports up to 20 Gb/s connections while the two USB-A 3.2 Gen 1 ports work with 5 Gb/s compatible devices. The 3.5mm audio jack allows you to connect your preferred headset.
RGB Lighting
The Ambience Pro RGB version enhances your gaming and entertainment experiences with integrated atmospheric lighting and ARGB enabled fans that may be customized with startup effects using web-based software or the included Adjust Pro Hub.
Glass Panel
Showcase your hardware and RGB lighting with the light-tinted tempered glass side panel.
Included Fans
Featuring fluid dynamic bearings and LCP blades, the Momentum 14 fans provide efficient and quiet cooling performance.
Efficient Cooling
Up to ten 140mm fans in total may be installed across the front, top, and rear panels. Possible configurations include having two 180mm fans on the front panel to enhance your cooling efficiency.
Radiator Support
Up to 360mm radiators may be installed on the front and side panels with support for a 420mm on the top panel. A 140mm radiator may be installed on the rear panel.
Specification :
| Compatibility | |
| Motherboard Support | ATX, E-ATX, Mini-ATX, Mini-ITX, SSI-CEB, SSI-EEB, EE-ATX |
| External Drive Bays | No |
| Internal Drive Bays | 2x 3.5″ |
| or | |
| 4x 2.5″ | |
| Drive Mounting (Non-Bay) | Motherboard Tray |
| 2x 3.5″ | |
| or | |
| 4x 2.5″ | |
| Bottom | |
| 2x 2.5″ | |
| Expansion Slots | 7x Full Height Horizontal |
| Maximum GPU Length | 20.2″ / 512 mm |
| CPU Cooler Height | 7.2″ / 182 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 9.1″ / 230 mm |
| PSU Mounting Location | Bottom |
| Cooling | |
| Fan Mounting | Front |
| 3x 120/140 mm | |
| or | |
| 2x 180 mm | |
| Top | |
| 3x 120/140 mm | |
| Rear | |
| 1x 120/140 mm | |
| Side | |
| 3x 140 mm | |
| Fans Included | Front: |
| 3x 140 mm LED (Unspecified rpm) | |
| Maximum Radiator Size | Front: |
| 360 mm | |
| Top: | |
| 420 mm | |
| Rear: | |
| 140 mm | |
| Side: | |
| 360 mm | |
| Fan Controller Included | Yes |
| Filters Included | Yes: Bottom |
| Inputs / Outputs | |
| I/O | 1x USB-C (USB 3.2 Gen 2×2) |
| 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) | |
| Physical | |
| Windowed Panel | Yes |
| Color | Black |
| Material | Steel, Tempered Glass |
| Certifications | No |
| Built-In Lighting | Yes |
| Tool-Less Design | Yes: Thumbscrews |
| Security | No |
| Cable Management Space | Yes: 1.5″ / 37.5 mm |
| Dimensions (W x H x D) | 9.6 x 20.3 x 22.6″ / 245 x 515 x 575 mm |
| Weight | 25.1 lb / 11.4 kg |
| Packaging Info | |
| Package Weight | 30 lb |
| Box Dimensions (LxWxH) | 26.5 x 23.5 x 13.5″ |
