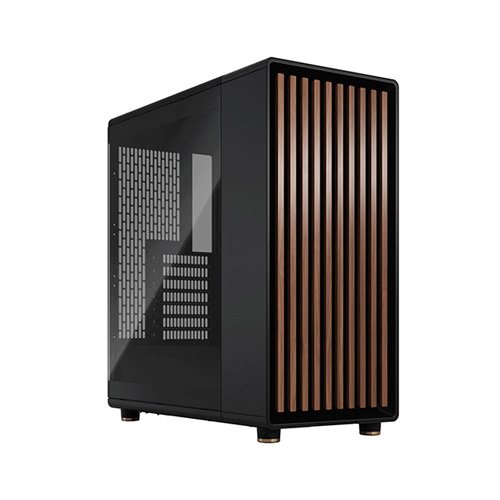

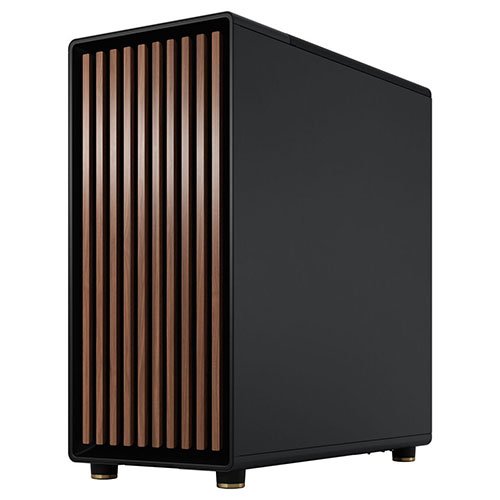

Fractal Design North Charcoal Black TG Dark Case Cabinet FD-C-NOR1C-02
Overview
Natural design
Enjoy a sophisticated looking case which integrates effortlessly into your living space
Enhance your gaming station with a real oak or walnut front, a faux leather tab and sleek steel or brass details
Type-C interface
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Ventilated performance
Natural ventilation through an open front and a stylishly integrated mesh top panel
The mesh version of the case features a full mesh side panel in addition to the top
Flexible storage
North features two included combined 3.5″/2.5″ drive mounts and two dedicated 2.5″ drive mounts out of the box
Technical Detail
Brand : Fractal Design
Modal : FD-C-NOR1C-02
Technical Spec
Dedicated 2.5″ drive mounts : 2
Combined 3.5/2.5” drive mounts : 2 (included)
5.25” drive mounts : 0
Expansion slots : 7
Front interface : 1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
Total fan mounts : 8 x 120 mm or 6 x 140 mm
Front fan : 3 x 120, 2 x 140 mm (2 x Aspect 140 mm PWM Included)
Top Fan : 2 x 120/140 mm
Rear fan : 1 x 120 mm
Dust filters : Front, PSU
Fixed cable straps : Yes
Cable routing grommets : Yes
Captive thumbscrews : HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
Left side panel : Mesh or tempered glass
Right side panel : Steel
Compatibility
Motherboard compatibility : ATX / mATX / Mini-ITX
Power supply type : ATX
PSU max length : 1 HDD Tray: 255 mm max, 2 HDD Tray: 155 mm max
GPU max length : 355 mm with and without front fan mounted
CPU cooler max height : 145 mm with Fan Bracket (Mesh version only)/ 170 mm w.o
Front radiator : Up to 360 mm
Top radiator : Up to 240 mm (See manual for details on ram clearance)
Rear radiator : 1 x 120 mm (If using a rear radiator the mesh version fan bracket can only be slotted into the bottom position)
Cable routing space : 30 mm
Dimensions
Case dimensions (LxWxH) ; 447 x 215 x 469 mm
Case dimensions w/o feet/protrusions/screws : 433,5 x 215 x 450 mm
Net weight : 7.6 kg (Mesh) / 7.7kg (TG)
Package dimensions (LxWxH) : 565 x 326 x 553 mm
Gross weight : 9.55 kg (Mesh) / 9.3kg (TG)
