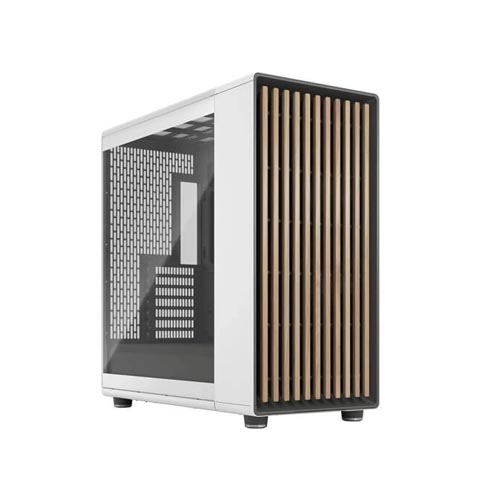

Fractal Design North XL TG Clear (E-ATX) Mid Tower Cabinet (White) FD-C-NOR1X-04
Overview :
North XL combines a transformative take on the gaming PC case with a generous form factor. It fuses design materials with airflow engineering, to make performance gaming a stylish addition to the living space. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building and gaming experience.
Natural design
Enjoy a sophisticated looking case which integrates effortlessly into your living space
Enhance your gaming station with an FSC-certified oak or walnut front, a faux leather tab and sleek steel or brass details
Type-C interface
Three front USB ports including one USB 3.1 Gen 2 Type-C with speeds up to 20Gbps
Ventilated performance
- Natural ventilation through an open front and a stylishly integrated mesh top panel
- The mesh version of the case features a full mesh side panel in addition to the top
Naturally unique
Enjoy a unique finish, with front panel bars cut from FSC-certified oak or walnut
Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Build versatility
- Make the most of your building experience with an intuitive interior layout
- Designed for E-ATX / ATX / mATX / mITX motherboards
Specification :
| Model Number | FD-C-NOR1X-04 |
| Dedicated 2.5″ drive mounts | 2 |
| Combined 3.5/2.5” drive mounts | 2 included |
| 5.25” drive mounts | 0 |
| Expansion slots | 7 |
| Front interface | 1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic |
| Total fan mounts (TG Version) | 7 x 120 mm or 6 x 140 mm |
| Front fan | 3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included) |
| Top fan | 3 x 120 mm, 2 x 140 mm or 2 x 180 mm |
| Rear fan | 1 x 120/140 mm |
| Dust filters | Front, PSU |
| Fixed cable straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket |
| Compatibility | |
| Motherboard compatibility | E-ATX / ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max length | 1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm |
| GPU max length | 413 mm with front fan mounted / 380 mm with a 33 mm-thick 420/360 mm front mounted radiator |
| Front radiator | Up to 420/360 mm |
| Top radiator | Up to 280/360 mm |
| Rear radiator | 1 x 120/140 mm |
| Cable routing space | 29 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 503 x 240 x 509 mm |
| Case dimensions w/o feet/protrusions/screws | 490 x 240 x 490 mm |
| Net weight | 9.5kg |
| Package dimensions (LxWxH) | 604 x 355 x 608 mm |
| Gross weight | 11.7kg |
| Package contents | North case, Accessory Box, User Manual |
| Warranty | 2 Years |
