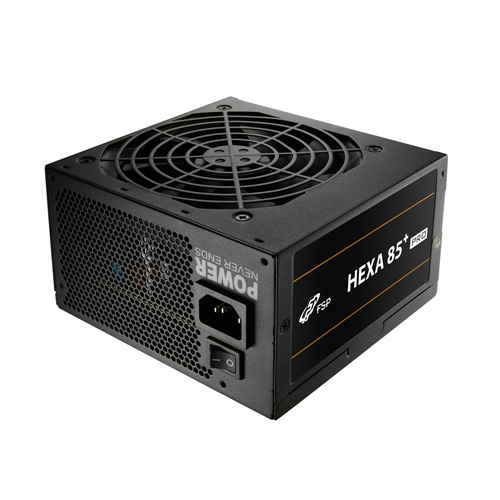

FSP HEXA 85+ PRO 550W 80 PLUS Bronze Certified SMPS HA2-550
Overview :
- Complies with ATX12 v2.5 & EPS12 v2.92
- Efficiency ≧ 85% at typical load
- Active PFC ≧ 0.9
- Hold up time > 17ms at 80% load
- +12V single-rail design
- Japanese electrolytic capacitors
- +5V&3.3V DC to DC module design
- 120mm silent and long life fan
- Flat black ribbon cables
- Complete protection: OCP/OVP/OPP/SCP
80 Plus® Bronze Certification
HEXA 85+ Pro Series, 80 PLUS ® bronze certified, saves energy through its high efficiency up to 85%.
All Black Round Cables
It gives your system a superior look than any other entry level power supplies.
Stable DC to DC Output Quality
HEXA85+ PRO series applies DC to DC modules to improve the reliability for greater compatibility as well as low ripple noise to reduce interference of system components for a prolonged system lifetime.
+12V Single Rail Design
Designed for power-intensive VGA cards, no problems to any overloading condition.
Optimal Cooling
HEXA 85+ PRO series comes with a 120mm quiet fan and a highly efficient ventilation fan guard to guarantee low noise operations without compromising its cooling efficiency.
Japanese Electrolytic Capacitors
Japanese electrolytic capacitors ensures safety on spare parts for prolonged lifespan and reliability.
Supports High-end Motherboard
For gaming enthusiast, the Hexa 85+ PRO 550W featured dual CPU power connectors for high-end motherboards and stable CPU power delivery.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.
Specification :
| Model | HA2-550 |
| Rated Output Power | 550W |
| Form Factor | ATX |
| 80 PLUS Certification | 80 PLUS® Bronze |
| Input Voltage | 100-240V |
| Input Current | 7.5-3A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥85% at typical load |
| Fan Type | Sleeve Fan, 120mm |
| Dimensions(L x W x H) | 150x140x86mm |
| Weight | 1328g |
| Protection | OCP/OVP/OPP/SCP |
| Warranty | 5 Years |
