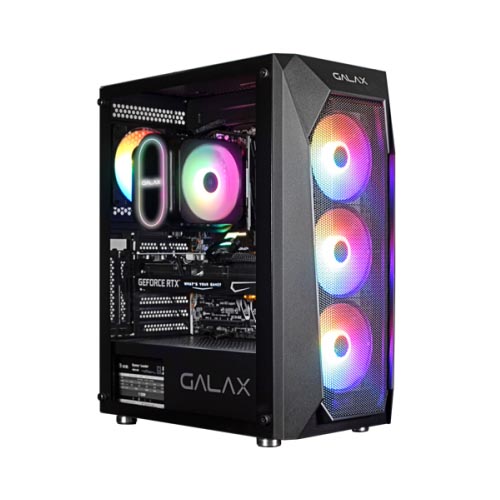

Galax Revolution-05 Mesh (ATX) Mid Tower Cabinet (Black) CGG5ANBA4B0
Overview :
Compatible with ATX, M-ATX, ITX motherboards, REV-05 is by far the tallest PC case in the Revolution family. Standing tall at 470mm, it provides a spacious interior for customization, allowing you to choose between vertical or horizontal mounting for the graphics card and maximizing cooling and storage potential for your next build.
Specification :
| Model | GALAX PC Case (REV-05) |
| Form Factor | ATX, M-ATX, ITX |
| Chassis | SPCC Tempered Glass |
| PSU Form Factor | ATX |
| M/B Form Factor | ATX, M-ATX, ITX |
| Panel | Front: ABS,Mesh cover |
| Top: Metal cover | |
| Side Panel | Left: Tempered Glass |
| Right: Metal cover | |
| Drive Bay | |
| 5.25″ (ODD) | NA |
| 3.5″ | NA |
| 3.5″ (HDD) | 2 |
| 2.5″ (SSD) | 3 |
| I/O | |
| Buttons | 2 |
| USB1.1 Port(s) | NA |
| USB2.0 Port(s) | 2 |
| USB3.0 Port(s) | 1 |
| USB3.1 Port(s) | NA |
| HD Audio Support | 1 |
| Card Reader (Support) | NA |
| P-Lock | NA |
| RGB Controller | NA |
| Controller max. fans | NA |
| RGB Controller max. LED strips | NA |
| Remote (IR or RF) | NA |
| Cooling Fan Support | |
| Front | 3x120mm (Fan optional) |
| Top | 2x120mm，2x140mm (Fan optional) |
| Rear | 1x120mm (Fan optional) |
| Bottom | 2x120mm (Fan optional) |
| Water Cooling Support(Radiator Size) | |
| Front | 240mm/280mm/360mm |
| Top | 240mm/280mm |
| Rear | 120mm |
| Dimensions | |
| Chassis | 350 x 205 x 470mm |
| Full Case (inc Fascia) | 400.6 x 205 x 481.5mm |
| Carton | 532 x 258 x 465mm |
| Net Weight (Kg) | 4.3KG |
| Gross Weight (Kg) | 4.95KG |
| VGA Card Length | up to 330mm |
| CPU Cooler Height | 160mm |
| Cable Management Depth | 18mm |
| Warranty | 1 Year |
