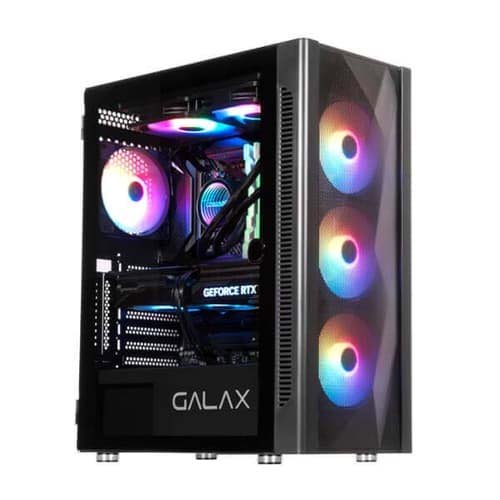

Galax Revolution-06 Mesh ARGB (ATX) Mid Tower Cabinet Black
Overview :
- Advanced Cooling System: Equipped with 4 vibrant RGB cooling fans and a high-performance mesh front panel for superior airflow, ensuring optimal cooling efficiency even during intense gaming sessions.
- Crystal-Clear Display: The innovative hinged magnetic tempered glass door provides a clear view of your PC’s components, showcasing your high-performance hardware in style.
- Enhanced Connectivity: Features 1x USB 3.0, 2x USB 2.0 ports, alongside dedicated 3.5mm microphone and headphone jacks for seamless connectivity. Includes a convenient reset button and a responsive power button for easy operation.
- Versatile Liquid Cooling Support: Supports various liquid cooling configurations including front (240mm/280mm/360mm), top (240mm/280mm), and rear (120mm), enabling you to unleash the full potential of advanced cooling solutions for overclocking and intensive tasks.
- Spacious Interior Design: Offers ample room to accommodate ATX, M-ATX, and ITX motherboards, ensuring compatibility with a wide range of gaming setups and hardware configurations.
- Optimized Graphics Card Compatibility: Supports graphics cards up to 330mm in length, allowing you to install the latest high-performance GPUs without compromise.
- Sleek and Modern Aesthetic: Boasts a minimalist design with clean lines, adding a sophisticated touch to your gaming rig while complementing any gaming environment.
Specification :
| Model Number | CGG6AGBA4A0 |
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX, M-ATX, ITX |
| Chassis | SPCC + Tempered Glass |
| PSU Form Factor | ATX ≤160mm ≤140*150*86mm |
| M/B Form Factor | ATX, M-ATX, ITX |
| Front Panel | ABS, Mesh cover |
| Top Panel | Metal cover |
| Side Panel | |
| Left | Tempered Glass |
| Right | Metal cover |
| Internal Drive Bay(s) | |
| 3.5″ (HDD) | *2 |
| 2.5″ (SSD) | *3 |
| I/O | |
| Buttons | *2 |
| USB1.1 Port(s) | *0 |
| USB2.0 Port(s) | *2 |
| USB3.0 Port(s) | *1 |
| HD Audio Support | *1 |
| Cooling Fan Support | |
| Front | 3x120mm (Fan optional) |
| Top | 2x120mm，2x140mm (Fan optional) |
| Rear | 1x120mm (Fan optional) |
| Side | 0 |
| Water Cooling Support (Radiator Size) | |
| Front | 240mm/280mm/360mm |
| Top | 240mm/280mm |
| Rear | 120mm |
| Dimensions | |
| Chassis | (L)350*(W)205*(H)470mm |
| Full Case (inc Fascia) | (L)400.6*(W)205*(H)481.5mm |
| Carton | (L)532*(W)258*(H)465mm |
| Net Weight (Kg) | 4.3KG |
| Gross Weight (Kg) | 4.95KG |
| VGA Card Length | up to 330mm |
| CPU Cooler Height | 160mm |
| Cable Management Depth | 18mm |
| ARGB Fan | 4 included |
| Warranty | 1 Year |
