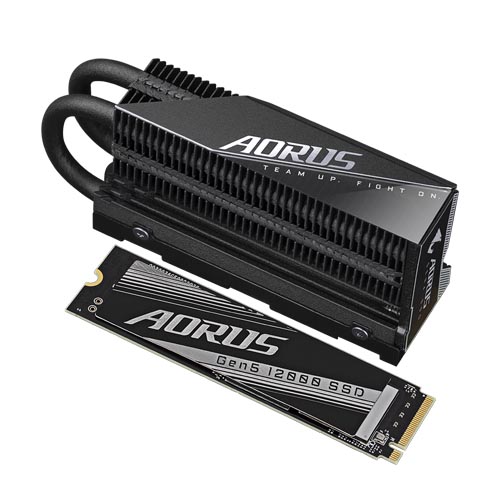

Gigabyte AORUS Gen5 12000 2TB M.2 NVMe SSD AG512K2TB
Overview :
Top-tier performance power by PCIe 5.0 x4 controller
Power by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and brand-new 232-layer 3D TLC NAND Flash, AORUS Gen5 12000 SSD delivers top-tier performance: sequential read/write speeds up to 12,400/11,800 MB/s. Aim at PC enthusiasts, gamers, and rendering professionals, AORUS Gen5 12000 gives users faster data transferring and a lower-latency gaming experience.
PCIe 5.0×4, NVMe 2.0 Interface
Sequential Read Speed : up to 12,400 MB/s**
Sequential Write speed : up to 11,800 MB/s**
DDR4 DRAM cache
8 CH with 32 CEs
Offer with an optional M.2 Thermal Guard XTREME with Nanocarbon Coating
Cutting edge speed
The PS5026-E26 controller is built with the advanced 12nm process, ensuring sufficient computing power. Also, it supports up to 8 NAND Flash channels with 32CEs, DDR4 caching and complies with the NVMe 2.0 standard. AORUS Gen5 12000 SSD offers approximately 70% faster in read throughput and up to 72% higher write throughput than PCIe Gen4.0 x4.
NAND Flash Selected for High Quality and Performance
Leveraging the superior throughput and high-quality combination that 3D TLC NAND provides, AORUS Gen5 12000 SSD brings a better experience in work.
M.2 Thermal Guard XTREME with Nanocarbon Coating
AORUS Gen5 12000 SSD offer with an optional M.2 Thermal Guard XTREME which is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transfers to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow conditions when your personal computer adopts a CPU AIO water cooler.
Why is keeping an SSDs at lower temperatures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance. With M.2 Thermal Guard XTREME, the SSD can operate at lower working temperatures to improve data storage reliability. Enjoy smoother & upgraded storage performance any time by utilizing M.2 Thermal Guard XTREME.
Specification :
| Interface | PCI-Express 5.0×4, NVMe 2.0 |
| Form Factor | M.2 2280 |
| Total Capacity | 2000GB |
| NAND | 3D TLC NAND Flash |
| External DDR Cache | LPDDR4 4GB |
| Sequential Read speed | Up to 12,400 MB/s |
| Sequential Write speed | Up to 11,800MB/s |
| Dimension | SSD without Heatsink: 80 x 22 x 3.5mm |
| SSD with Heatsink: 92 x 23.5 x 44.7 mm | |
| Please refer to the file to check the M.2 Thermal Guard XTREME Incompatible List | |
| Mean time between failure (MTBF) | 1.6 million hours |
| Max. Operating Power | 11.5W |
| Power Consumption (Idle, PS3) | <144mW |
| Power Consumption(PS4, L1.2) | <85mW |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
| Warranty | 5 Years |
