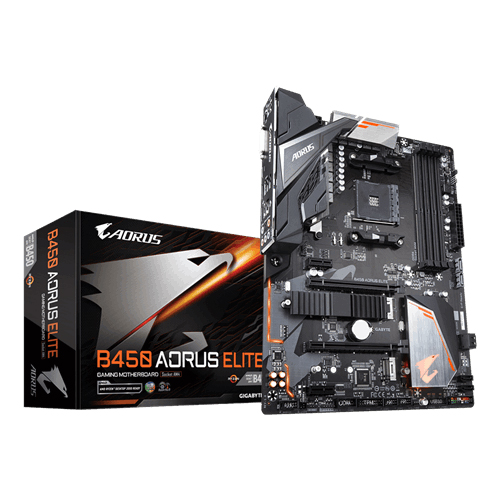

Gigabyte B450 AORUS ELITE AMD AM4 Motherboard
Overview :
Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
HDMI, DVI-D Ports for Multiple Display
Integrated I/O Shield of Ultra Durable™ Design
Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
CEC 2019 Ready, Save Power with a Single Click
Specification :
| CPU | AM4 Socket: |
| AMD Ryzen™ 2nd Generation processors | |
| AMD Ryzen™ with Radeon™ Vega Graphics processors | |
| AMD Ryzen™ 1st Generation processors | |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory |
| Dual channel memory architecture | |
| Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor: |
| 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@60(Note) Hz | |
| * Support for HDMI 2.0 version and HDCP 2.2.(Note) | |
| Maximum shared memory of 16 GB | |
| (Note) Actual support may vary by CPU. | |
| Audio | Realtek® ALC892 codec |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) | |
| 1 x PCI Express x16 slot, running at x4 (PCIEX4) | |
| * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. | |
| 2 x PCI Express x1 slots | |
| (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) | |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) |
| 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) | |
| 6 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, and RAID 10 | |
| * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| USB | Chipset: |
| 2 x USB 3.1 Gen 1 ports available through the internal USB header | |
| 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Integrated in the APU: | |
| 4 x USB 3.1 Gen 1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 2 x M.2 Socket 3 connectors | |
| 6 x SATA 6Gb/s connectors | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x CPU cooler LED strip/RGB LED strip extension cable header | |
| 1 x RGB (RGBW) LED strip header | |
| 2 x digital LED strip headers | |
| 2 x digital LED strip power select jumpers | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB 3.1 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x DVI-D port | |
| 1 x HDMI port | |
| 4 x USB 3.1 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 6 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 3D OSD | |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| Smart Keyboard | |
| Smart TimeLock | |
| Smart HUD | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| V-Tuner | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundle Software | Norton® Internet Security (OEM version) |
| Realtek® 8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | Support for Windows 10 64-bit |
| Support for Windows 7 64-bit | |
| * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. | |
| * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. | |
| Form Factor | ATX Form Factor; 30.5cm x 23.5cm |
