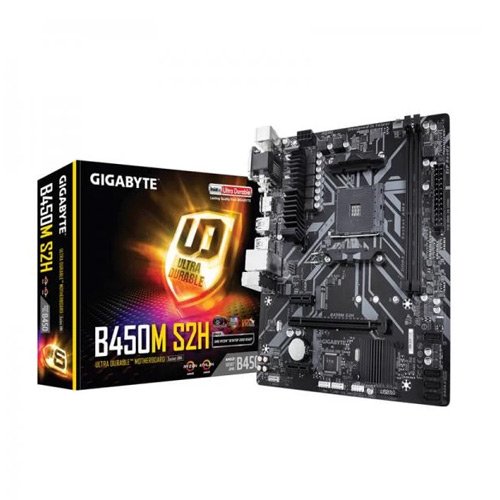

GIGABYTE B450M S2H MOTHERBOARD (AMD SOCKET AM4/RYZEN SERIES CPU/MAX 32GB DDR4 3200MHZ MEMORY)
Overview :
- Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- HDMI, DVI-D, D-sub Ports for Multiple Display
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- RGB Fusion supports RGB LED Strips in 7-Colors
- High Quality Audio Capacitors and Audio Noise Guard Design
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- APP Center Including EasyTune™ and Cloud Station™ Utilities
Specification :
| CPU | AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors (Please refer “CPU Support List” for more information.) |
| Chipset | AMD B450 |
| Memory | 1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| 2. Dual channel memory architecture | |
| 3. Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| 2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note) | |
| * Support for HDMI 2.0 version and HDCP 2.2.(Note) | |
| Maximum shared memory of 2 GB | |
| (Note) Actual support may vary by CPU. | |
| Audio | 1. Realtek® ALC887 codec |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| 4. Support for S/PDIF Out | |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) | |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) | |
| Storage Interface | 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) |
| * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. | |
| 2. 4 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, and RAID 10 | |
| USB | Chipset: |
| 1. 2 x USB 3.1 Gen 1 ports available through the internal USB header | |
| 2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| CPU: | |
| 1. 4 x USB 3.1 Gen 1 ports on the back panel | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x system fan header | |
| 5. 1 x M.2 Socket 3 connector | |
| 6. 4 x SATA 6Gb/s connectors | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 1 x S/PDIF Out header | |
| 10. 1 x CPU cooler LED strip/RGB LED strip header | |
| 11. 1 x USB 3.1 Gen 1 header | |
| 12. 2 x USB 2.0/1.1 headers | |
| 13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 14. 1 x speaker header | |
| 15. 1 x Clear CMOS jumper | |
| 16. 1 x chassis intrusion header | |
| Back Panel Connectors | 1. 1 x PS/2 keyboard port |
| 2. 1 x PS/2 mouse port | |
| 3. 1 x D-Sub port | |
| 4. 1 x DVI-D port | |
| 5. 1 x HDMI port | |
| 6. 4 x USB 3.1 Gen 1 ports | |
| 7. 2 x USB 2.0/1.1 ports | |
| 8. 1 x RJ-45 port | |
| 9. 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Overheating warning | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| 3D OSD | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| Smart Keyboard | |
| Smart TimeLock | |
| Smart HUD | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
| Bundle Software | 1. Norton® Internet Security (OEM version) |
| 2. Realtek® 8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | Support for Windows 10 64-bit |
| Support for Windows 7 64-bit | |
| * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. | |
| * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Warranty | 3 Years |
