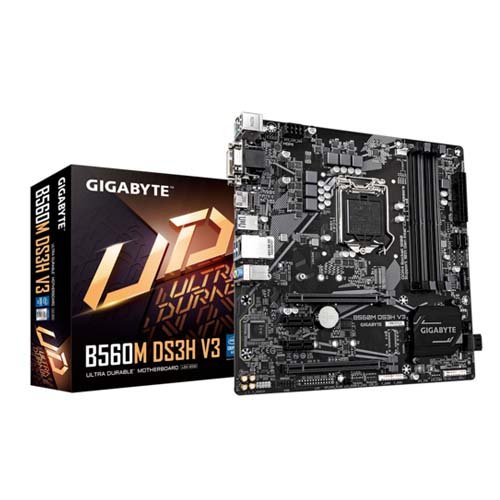

Gigabyte B560M DS3H V3 Intel Motherboard
Overview :
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- NVMe PCIe Gen3 X4 M.2 Connectors
- Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
- Intel® Optane™ Memory Ready
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- 3 Display Interfaces Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Anti-Sulfur Resistors Design
- Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
Specification :
| Brand | GIGABYTE |
| Model | B560M DS3H V3 |
| Supported CPU | |
|---|---|
| CPU Socket Type | LGA 1200 |
| CPU Type | 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® C |
| Chipsets | |
| Chipset | Intel H470 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 x DDR4 DIMM Slots |
| Memory Standard | 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/ |
| Maximum Memory Supported | up to 128 GB |
| Channel Supported | Dual channel memory architecture |
| Expansion Slots | |
| PCI Express x1 | 2 x PCI Express x1 slots |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6.0 Gb/s Connectors |
| SATA RAID | Support Raid 0, 1, 5, 10 |
| Onboard Video | |
| Onboard Audio | |
| Audio Channels | 2/4/5.1/7.1-channel |
| Audio Chipset | Realtek audio codec |
| Onboard LAN | |
| LAN Chipset | Intel GbE LAN chip (1 Gbps/10 Mbps/100 Mbps) |
| Rear Panel Ports | |
| USB | 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports |
| IEEE 1394 | N/A |
| S/PDIF Out | N/A |
| Audio Ports | 3 x audio jacks |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x RJ-45 port |
| HDMI | 1 x HDMI Port |
| Onboard USB | |
| Onboard USB | Chipset: 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the intern |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | Micro ATX Form Factor |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 24.4cm x 24.4cm |
