Gigabyte B650 EAGLE AX AM5 ATX Motherboard
Overview :
- AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance:12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6E 802.11ax & GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification :
CPU | AMD Socket AM5, support for: |
AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors | |
(Go to GIGABYTE’s website for the latest CPU support list.) | |
Chipset | AMD B650 |
Memory | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory | |
Dual channel memory architecture | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme | |
Memory Profile (XMP) memory modules | |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support | |
List” on GIGABYTE’s website for more information.) | |
Onboard Graphics | Integrated Graphics Processor: |
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
* Support for DisplayPort 1.4 version. | |
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
* Support for HDMI 2.1 version and HDCP 2.3. | |
** Support for native HDMI 2.1 TMDS compatible ports. | |
(Graphics specifications may vary depending on CPU support.) | |
Audio | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To | |
configure 7.1-channel audio, access the audio software for audio settings. | |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode | |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 | |
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. | |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: |
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: | |
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs | |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs | |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs | |
Chipset: | |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) | |
4 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
USB | CPU: |
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support | |
CPU+USB 2.0 Hub: | |
4 x USB 2.0/1.1 ports on the back panel | |
Chipset: | |
2 x USB 3.2 Gen 1 ports available through the internal USB header | |
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the | |
internal USB header | |
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
Chipset+USB 2.0 Hub: | |
4 x USB 2.0/1.1 ports available through the internal USB headers | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x CPU fan/water cooling pump header | |
2 x system fan headers | |
1 x system fan/water cooling pump header | |
3 x addressable RGB Gen2 LED strip headers | |
1 x RGB LED strip header | |
3 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
1 x USB 3.2 Gen 1 header | |
3 x USB 2.0/1.1 headers | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ | |
GC-TPM2.0 SPI V2 module only) | |
1 x Q-Flash Plus button | |
1 x serial port header j | |
1 x Clear CMOS jumper | |

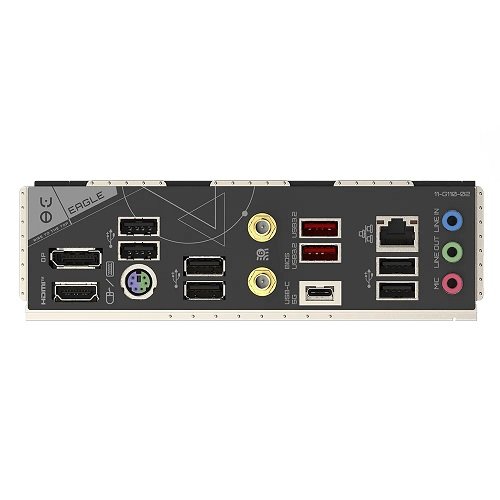

Back Panel Connectors | 1 x DisplayPort |
1 x HDMI port | |
1 x PS/2 keyboard/mouse port | |
2 x SMA antenna connectors (2T2R) | |
1 x USB Type-C® port, with USB 3.2 Gen 1 support | |
2 x USB 3.2 Gen 2 Type-A ports (red) | |
6 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
Temperature detection | |
Fan speed detection | |
Water cooling flow rate detection | |
Fan fail warning | |
Fan speed control | |
* Whether the fan (pump) speed control function is supported will depend on the fan | |
(pump) you install. | |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
Support for Q-Flash | |
Support for Q-Flash Plus | |
Bundled Software | Norton® Internet Security (OEM version) |
LAN bandwidth management software | |
Operating System | Support for Windows 11 64-bit |
Support for Windows 10 64-bit | |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
