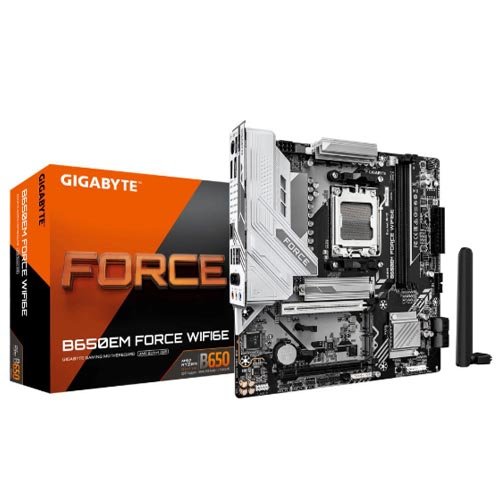

Gigabyte B650EM FORCE WIFI6E Motherboard
Overview :
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 5.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：HDMI, DisplayPort
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification :
| CPU | AMD Socket AM5Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | DDR5 9600(OC) to 4400 MT/sDual Channel ArchitectureNon-ECC Unbuffered DIMM (1Rx8 / 2Rx8 / 1Rx16)Supports AMD EXPO™ and XMP |
| Onboard Graphics | AMD Radeon™ Graphics (CPU dependent)HDMI 2.1 – up to 4096×2160 @60HzDisplayPort 1.4 – up to 3840×2160 @144Hz |
| Audio | Realtek® Audio CODECHigh Definition Audio2 / 4 / 5.1 / 7.1-channel |
| LAN | Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps) |
| Wireless | MediaTek Wi-Fi 6E MT7902Wi-Fi a/b/g/n/ac/ax (2.4/5/6GHz)Bluetooth 5.3 |
| Expansion Slots | 1 × PCIe x16 (CPU)• PCIe 5.0 x16 (Ryzen 9000/7000)• PCIe 4.0 x8 / x4 (Ryzen 8000)1 × PCIe 4.0 x4 (Chipset) |
| Storage – M.2 | M2A_CPU: PCIe 5.0 x4 (Ryzen 9000/7000)M2B_CPU: PCIe 4.0 x4M2C_SB: PCIe 4.0 x2 |
| Storage – SATA | 4 × SATA 6Gb/s |
| RAID (NVMe) | RAID 0 / 1 / 10RAID 5 (Ryzen 9000 only) |
| RAID (SATA) | RAID 0 / 1 / 10 |
| USB (CPU) | 1 × USB-C (USB 3.2 Gen 1)1 × USB 3.2 Gen 2 Type-A1 × USB 2.0 |
| USB (Chipset) | 1 × USB-C (USB 3.2 Gen 1, header)4 × USB 3.2 Gen 15 × USB 2.0 |
| Internal I/O | 24-pin ATX Power8-pin CPU PowerCPU Fan + Pump Header2 × System Fan/Pump Headers3 × ARGB Gen2 Headers1 × RGB Header3 × M.2 Slots4 × SATA PortsUSB-C HeaderUSB 3.2 Header2 × USB 2.0 HeadersFront Panel + Audio HeaderTPM HeaderClear CMOS JumperQ-Flash Plus Button |
| Back Panel I/O | HDMIDisplayPortPS/2 PortUSB-C (USB 3.2 Gen 1)2 × USB 3.2 Gen 11 × USB 3.2 Gen 2 Type-A2 × USB 2.0RJ-45 LAN2 × Antenna Ports3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage / Temperature / Fan Speed DetectionWater Cooling Flow RateFan Fail Warning |
| BIOS | 256 Mbit FlashAMI UEFI BIOSACPI 5.0, SMBIOS 2.7 |
| Special Features | GIGABYTE Control Center (GCC)Q-Flash / Q-Flash PlusSmart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| Operating System | Windows 11 64-bitWindows 10 64-bit |
| Form Factor | Micro-ATX (24.4 × 24.4 cm) |
