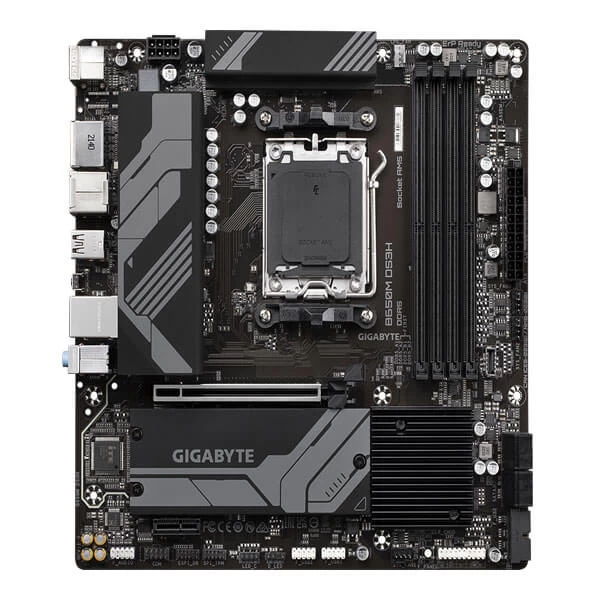

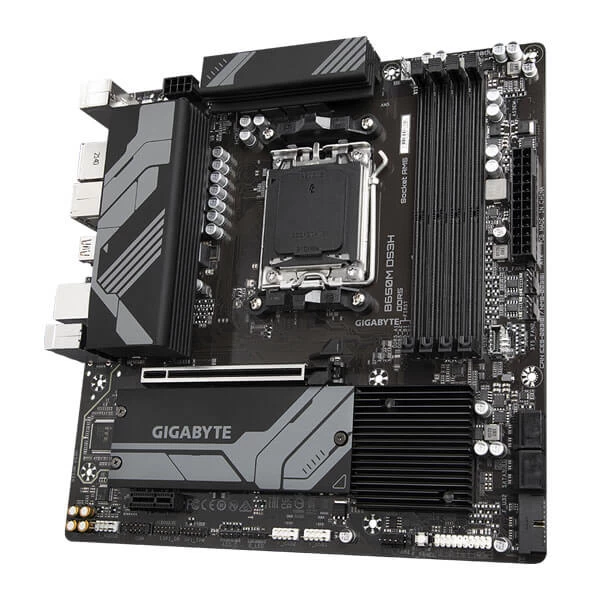

Gigabyte B650M DS3H DDR5 AM5 AMD Motherboard
Overview :
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Direct 6 2 1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- PCIe x16 EZ-Latch with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification :
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6400MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO) |
| Onboard Graphics Outputs | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 2 x DisplayPort |
| PCI Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| Networking | 1 x 2.5Gb Ethernet |
| Audio | Realtek® CODEC |
| Connectivity | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| Internal Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | Three Year Manufacturer Warranty |
