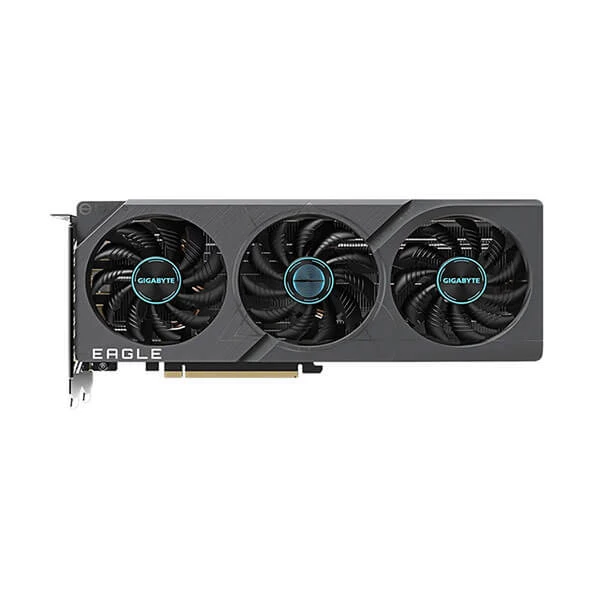

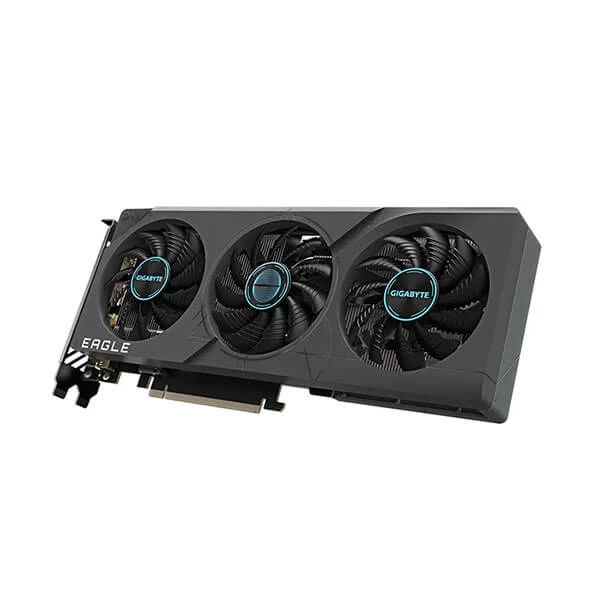

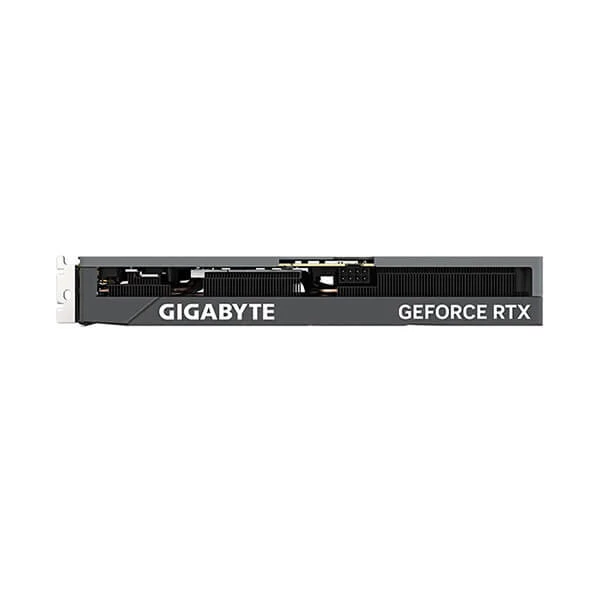

Gigabyte GeForce RTX 4060 Ti Eagle 8G GDDR6 Graphics Card GV-N406TEAGLE-8GD
Overview :
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

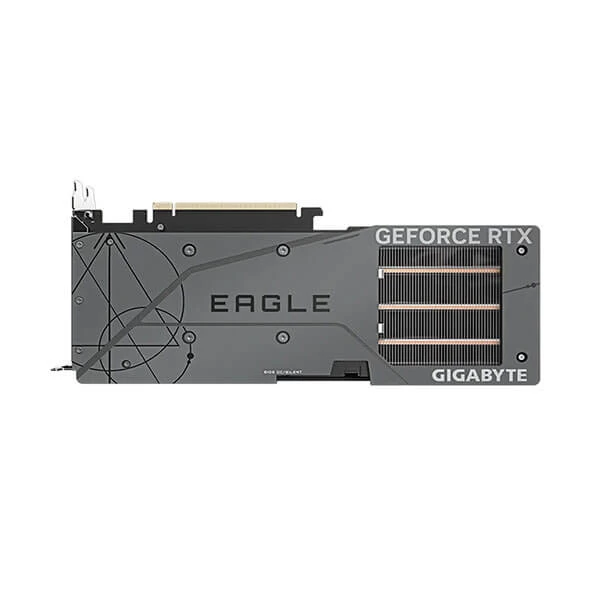

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Technical Detail
Brand : Gigabyte
Modal : GV-N406TEAGLE-8Gb
Technical Spec
Graphics Processing : GeForce RTX™ 4060 Ti (8GB)
Core Clock : 2535 MHZ
CUDA® Cores : 4352
Memory Clock : 18 Gbps
Memory Size : 8GB
Memory Type : GDDR6
Memory Bus : 128 bit
Card Bus : PCI-E 4.0
Digital max resolution : 7680 x 4320
Multi-view : 4
Card size : L=272 W=115 H=41 mm
PCB Form : ATX
DirectX : 12 Ultimate
OpenGL : 4.6
Recommended PSU : 500W
Power Connectors : 8 pin*1

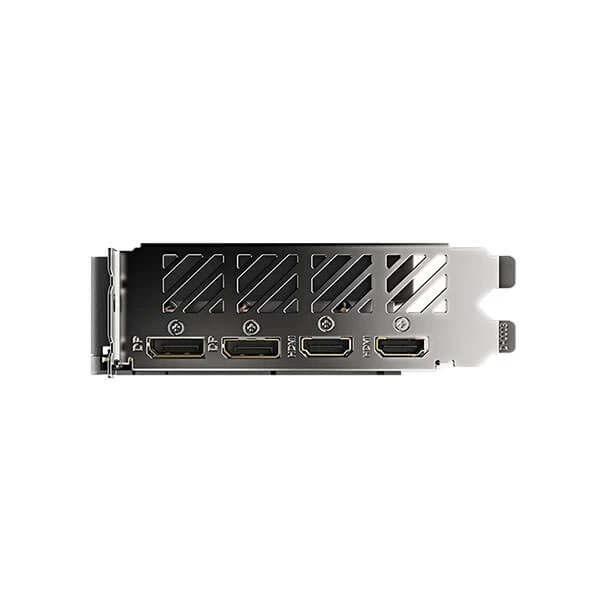

Output : DisplayPort 1.4a*2, HDMI 2.1a*2
Accessories : Quick guide
