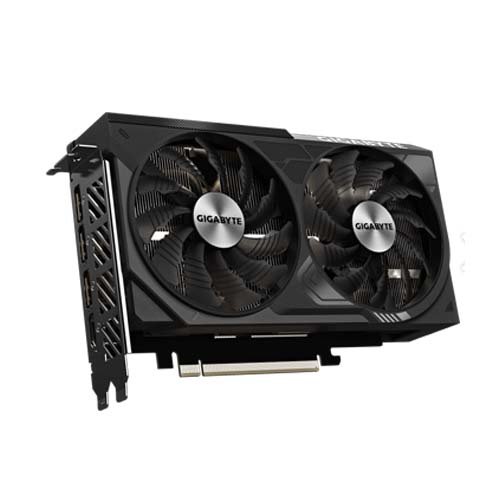

Gigabyte GeForce RTX 4070 Windforce 2X OC GDDR6X Graphic Card GV-N4070WF2OC-12GD
Overview :
Gigabyte GeForce RTX 4070 Windforce 2X OC GDDR6X (GV-N4070WF2OC-12GD)
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System
Protection back plate
Technical Detail
Brand : Gigabyte
Model : GV-N4070WF2OC-12GD
Technical Spec
Graphics Processing : GeForce RTX 4070
Core Clock : 2490 MHz (Reference Card: 2475 MHz)
CUDA Cores : 5888
Memory Clock : 21 Gbps
Memory Size : 12 GB
Memory Type : GDDR6X
Memory Bus : 192 bit
Card Bus : PCI-E 4.0
Digital max resolution : 7680×4320
Multi-view : 4
Card size : L=201 W=122.3 H=48.4 mm
PCB Form : ATX
DirectX : 12 Ultimate
OpenGL : 4.6
Recommended PSU : 650W
Power Connectors : 8 pin *1
Output
DisplayPort 1.4a *3
HDMI 2.1a *1
