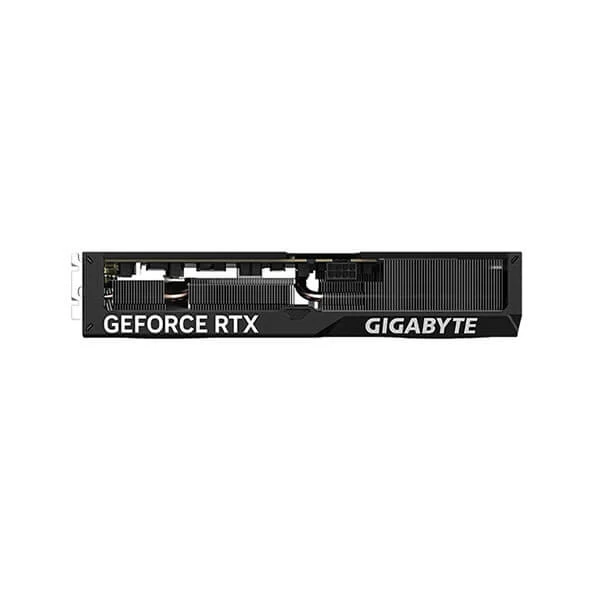

Gigabyte GeForce RTX 4070 WINDFORCE OC 12G 12GB GDDR6X Graphic Card GV-N4070WF3OC-12GD
Overview :
KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System

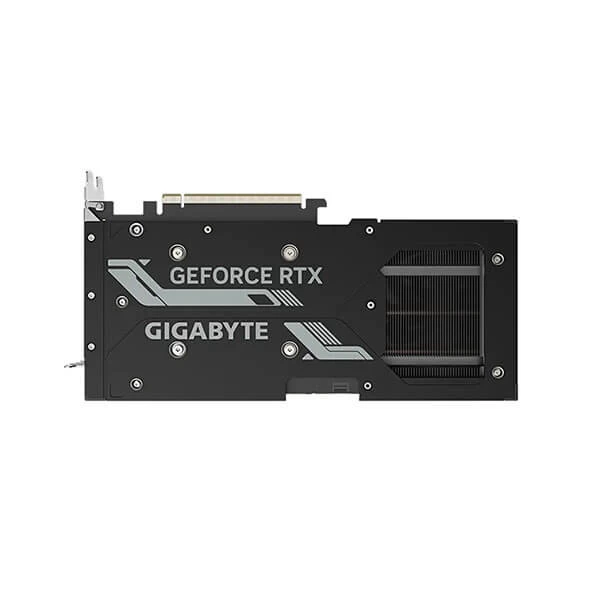

Protection metal back plate
CORE CLOCK
2490 MHz (Reference Card: 2475 MHz)
WINDFORCE COOLING SYSTEM

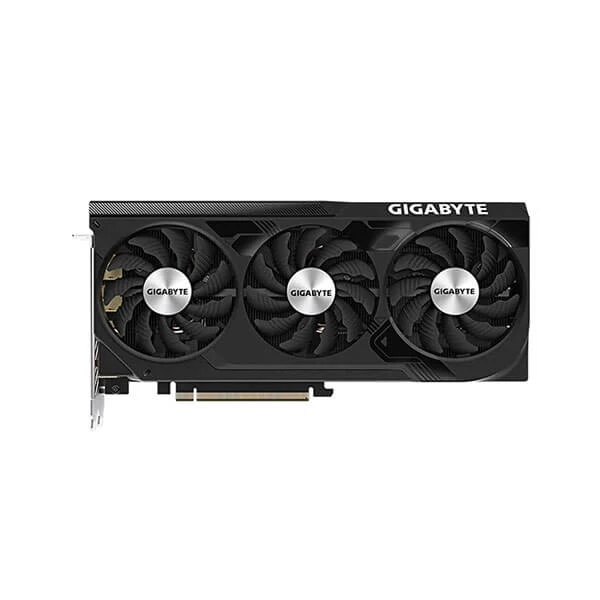

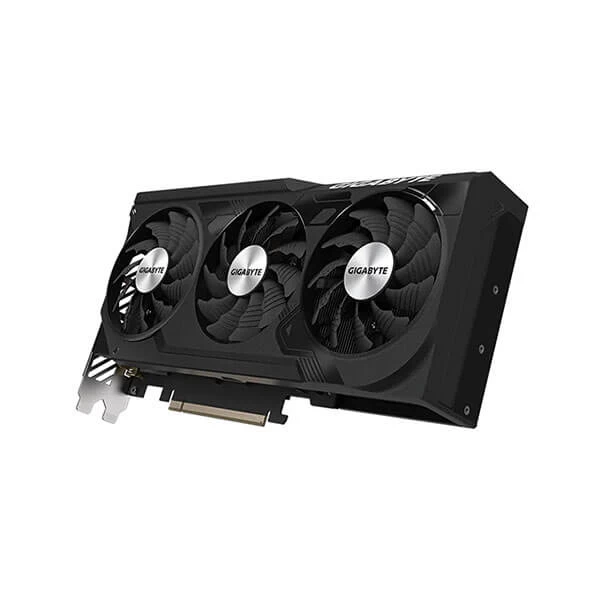

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Specification :
| Graphics Processing | GeForce RTX™ 4070 |
| Core Clock | 2490 MHz (Reference Card: 2475 MHz) |
| CUDA® Cores | 5888 |
| Memory Clock | 21 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6X |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=261 W=126 H=50 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 pin *1 |
| Output | DisplayPort 1.4 *3 |
| HDMI 2.1a *1 | |
| Accessories | Quick guide |
