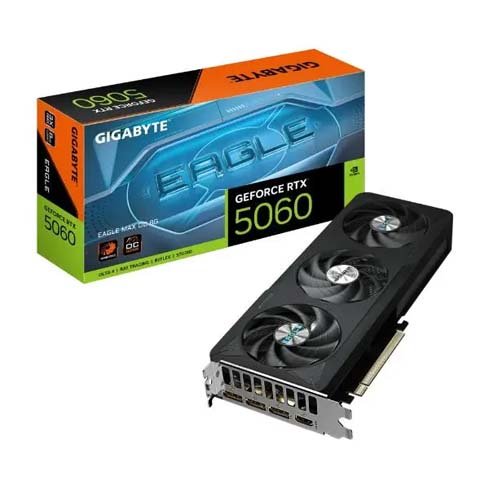

Gigabyte GeForce RTX 5060 EAGLE MAX OC 8GB Graphics Card GV-N5060EAGLEMAX OC-8GD
Overview :
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Gigabyte GeForce RTX 5060 EAGLE MAX OC Reinforced structure
Specification:
| Model | GeForce RTX™ 5060 |
| Core Clock | 2550 MHz (Reference: 2497 MHz) |
| CUDA® Cores | 3840 |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128-bit |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680×4320 |
| Multi-view | 4 Displays |
| Card Size | L=281 mm, W=115 mm, H=40 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 550W |
| Power Connectors | 8-Pin ×1 |
| Output Ports | 3× DisplayPort 2.1b1× HDMI 2.1b |
| Accessories | Quick Guide |
