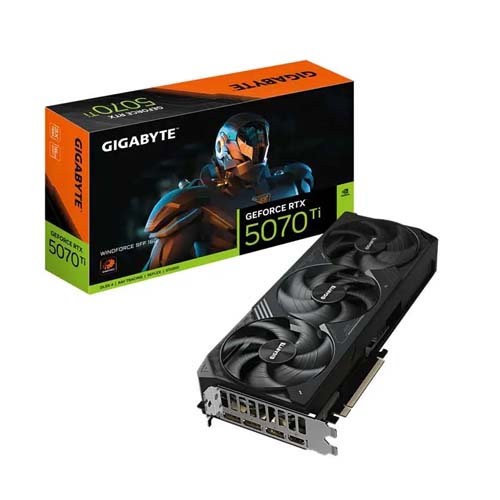

Gigabyte GeForce RTX 5070 Ti Windforce SFF 16GB Graphics Card GV-N507TWF3-16GD
Overview :
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
Specification :
| Graphics Processing | GeForce RTX™ 5070 Ti |
| Core Clock | 2542Mhz |
| Cuda Cores | 8960 |
| Memory Clock | 28 Gbps |
| Memory Size | 16GB |
| Memory Type | GDDR7 |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi View | 4 |
| Card Size | L=304 W=126 H=50 mm |
| PCB Form | ATX |
| Direct X | DirectX 12 API |
| Open GL | OpenGL 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 16 pin*1 |
| Output | DisplayPort 2.1b x3 HDMI 2.1b x1 |
| Accessories | 1. VGA manual 2. 1x 12V-2×6 to 2x PCIe 8pin adapter 3. Versatile VGA holder 4. Versatile VGA holder manual |
| Warranty | 3 Years |
