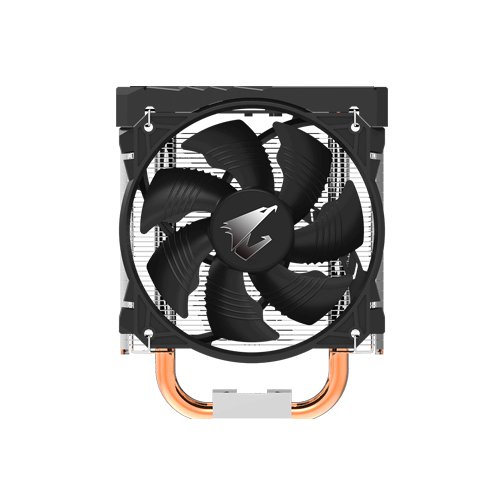

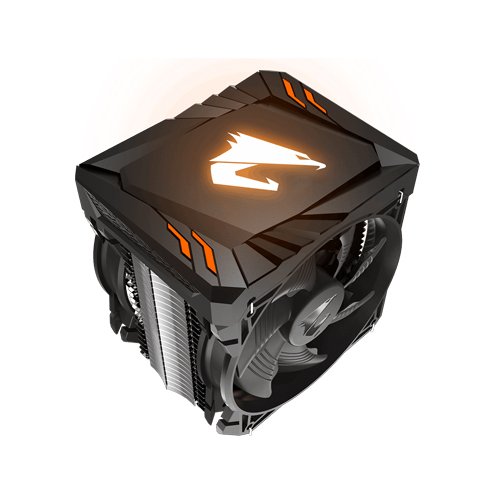

Gigabyte GP-ATC700 AORUS CPU Cooler
Overview :
DUAL 120MM 2 BALL BEARING PWM FANS
Attached 2 big 120mm PWM fans to each side of the heat-sink, will efficiently dissipate the heat from the CPU at a very low noise level. PWM function provides the accurate and efficient fan speed for the CPU, to optimize the noise reduction and the thermal performance. GIGABYTE patented blade fan design increases the airflow. And moreover, the 2 ball bearing structure will provide longer and more stable lifespan.
120MM UNIQUE BLADE FAN DESIGN
The 120mm dynamic adjusting fan provides the silent operation. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by over the traditional fans.
DOUBLE BALL BEARING STRUCTURE
The double ball bearing structure has better heat endurance and efficiency than sleeve structure. Hence it will provide longer life time.
Heat-Pipe direct touch technology
The 3x 100mm pure copper heat pipes are shaped to maximize the direct contact area to the CPU for enhanced thermal transfer.
Specification :
Rated Voltage | Fan :12V DC , LED : 12V |
Rated Current | 0.21A |
Fan Speed | 500-1700 RPM±10% |
Bearing Type | 2 Ball Bearing |
Weight | 955 g |
CPU Socket | Intel Socket 2066 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 |
AMD Socket FM2 , FM2, FM1, AM4, AM3 , AM3, AM2 , AM2, 939, 754 | |
TDP | >200W |
Dimensions (LxWxH) | 139 x 109 x 169 mm |
Heat Sink Dimensions (LxWxH) | 133 x 59 x 158 mm |
Heat Sink Material | 3 x 10mm Heat Pipes / Aluminum Fins |
Heat Sink Weight | 670 g |
Heat Pipe Dimensions | Ø10 mm |
Fan Dimensions | Ø120*25mm*2PCS |
Fan Air Flow | 14-53 CFM ±10% |
Fan Air Pressure | 0.2-1.93 mmH2O ±10% |
Fan Life Expectancy | 70000 Hrs |
Noise Level | 12 ~ 31 dBA |
Connector | 4 Pin |
Power Consumption | 2.52W |
Fan Weight | 142 g |
