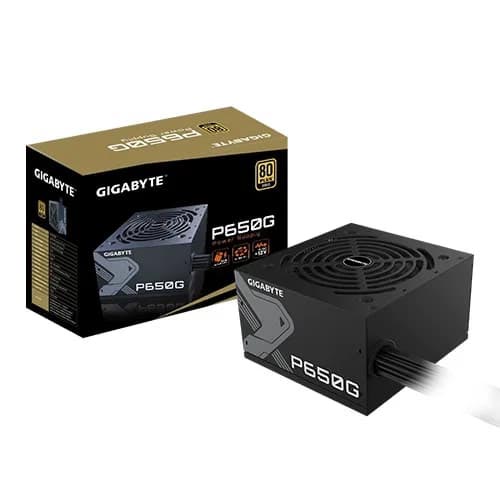

Gigabyte P650G 650 Watt 80 Plus Gold SMPS GP-P650G
Overview :
- 80 PLUS Gold certified
- Main Japanese capacitors
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact design
- 5 years warranty (Adjusted according to different regions)
HIGH QUALITY JAPANESE CAPACITORS
The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product’s lifespan.
120MM SILENT HYDRAULIC BEARING (HYB) FAN
The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.
PROTECTION
To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.
80 PLUS GOLD CERTIFIED
The 80 Plus Gold certification guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
COMPACT DESIGN
Through GIGABYTE’s exceptional design capabilities and the use of high-quality materials, we have successfully reduced the size of the power supply unit. This compact power supply not only facilitates easier installation into various chassis but also enhances the thermal efficiency within the case
Specification :
| Model | GP-P650G |
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 9-4A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 650W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm CPU/EPS 4+4 Pin x 2 : 600mm + 150mm PCI-e 6+2 Pin x 4 : 500mm + 150mm SATA x 6 : 500mm + 150mm + 150mm 4 Pin Peripheral x 3 : 500mm + 150mm + 150mm |
