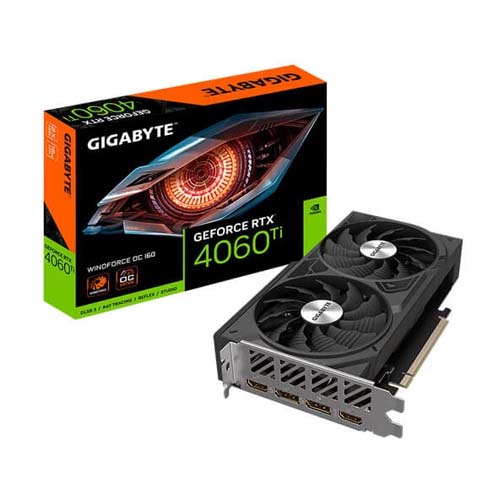

Gigabyte RTX 4060 Ti Windforce OC 16GB Graphics Card GV-N406TWF2OC-16GD
Overview :
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (16GB)
- Integrated with 16GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Protection metal back plate
CORE CLOCK
2565 MHz (Reference Card: 2535 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Specifications
| Model | GV-N406TWF2OC-16GD |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 4060 Ti |
| PCI Express | 4.0 |
| GPU Base Clock | 2565 Mhz |
| Memory Clock | 18 Gbps |
| Memory Size | 16 GB |
| Memory Interface | 128 Bit |
| Memory Type | GDDR6 |
| Direct X Support | 12 Ultimate |
| Open GL | 4.6 |
| Ports |
|
| Resolution | 7680×4320 |
| Cooler | Dual Fan |
| Software | Driver & Software |
| Package Contents | Graphics Card, User Manual |
| GPU Core (Cuda Core) | 4352 |
| Power Connectors | 1 x 8 Pin |
| Warranty | 3 Years |
