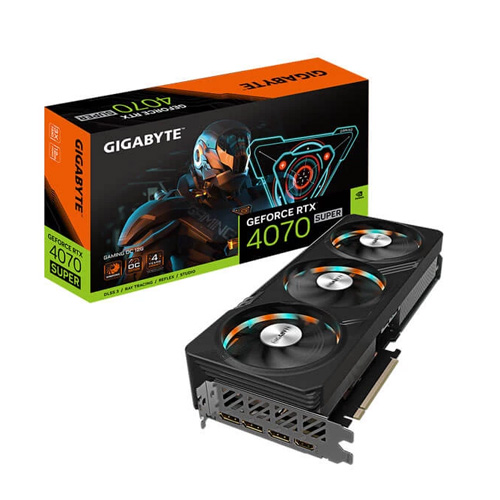

Gigabyte RTX 4070 Super Gaming OC 12GB Graphics Card GV-N407SGAMING OC-12GD
Overview :
Gigabyte GeForce RTX 4070 SUPER GAMING OC 12GB is a graphics card featuring three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes and 3D active fans.
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 SUPER
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS

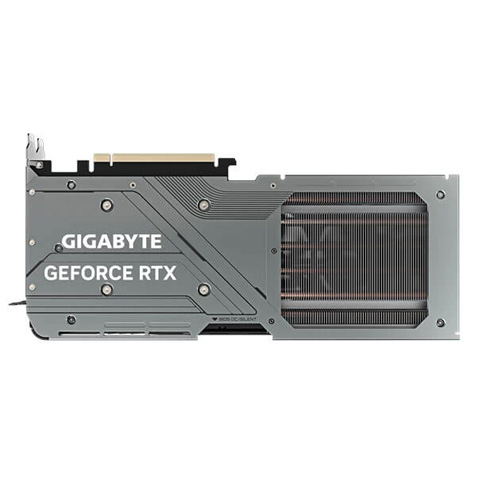

Protection metal back plate
4 Years Warranty (Online registration required)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

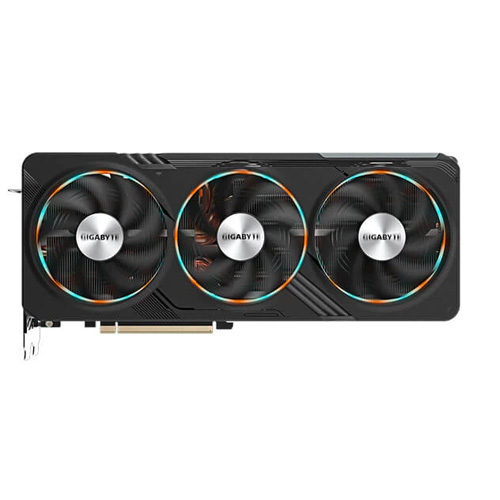

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
Specification :
Graphics Processing : GeForce RTX™ 4070 SUPER
Core Clock : 2565 MHz (Reference card: 2475 MHz)
CUDA® Cores : 7168
Memory Clock : 21 Gbps
Memory Size : 12 GB
Memory Type : GDDR6X
Memory Bus : 192 bit
Card Bus : PCI-E 4.0
Digital max resolution : 7680×4320
Multi-view : 4
Card size : L=300 W=130 H=57.6 mm
PCB Form : ATX
DirectX : 12 Ultimate
OpenGL : 4.6
Recommended PSU : 700W
Power Connectors : 16 pin*1

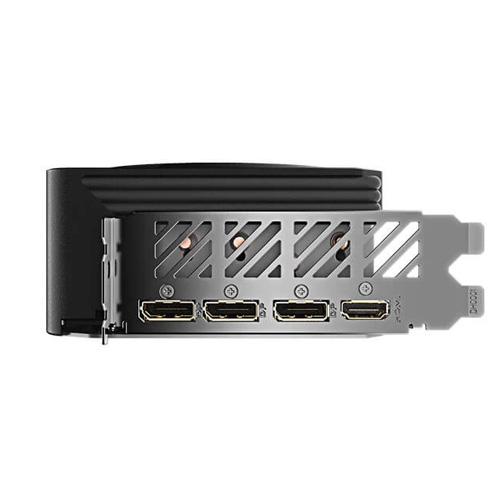

Output :
DisplayPort 1.4a *3
HDMI 2.1a *1
Accessories
1. Quick guide
2. Warranty registration
3. One 16 pin two 8-pin power adaptor
