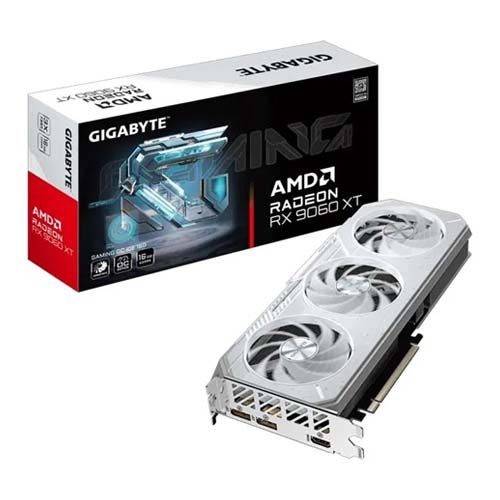

Gigabyte RX 9060 XT GAMING OC ICE 16G GDDR6 Graphic Card GV-R906XGAMINGOCICE-16GD
Overview :
Gigabyte WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
REINFORCED STRUCTURE
The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
Specification :
| Graphics Processing | Radeon RX 9060 XT |
| Core Clock | Boost Clock: up to 3320 MHz (Reference: 3130 MHz); Game Clock: up to 2780 MHz (Reference: 2530 MHz) |
| Stream Processors | 2048 |
| Memory Clock | 20 Gbps |
| Memory Size | 16GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi-view Support | 3 |
| Card Size (mm) | Length 281, Width 118, Height 40 |
| PCB Form | ATX |
| DirectX Support | DirectX 12 API |
| OpenGL Support | OpenGL 4.6 |
| Recommended PSU | 450W |
| Power Connectors | 8 pin x 1 |
| Output | DisplayPort 2.1a x2, HDMI 2.1b x1 |
| Accessories Included | VGA manual |
| Notes | Boost Clock dependent on thermal and workload; Game Clock typical for gaming apps, varies per application |
