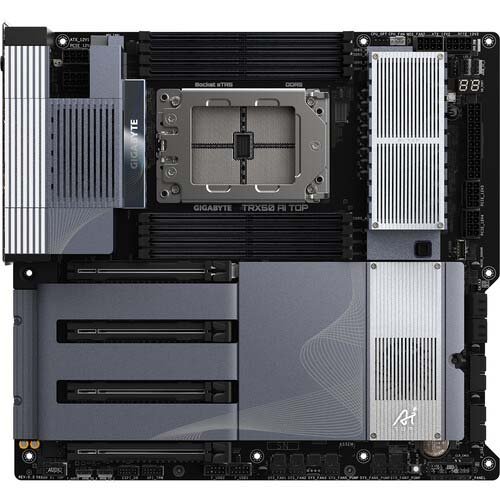

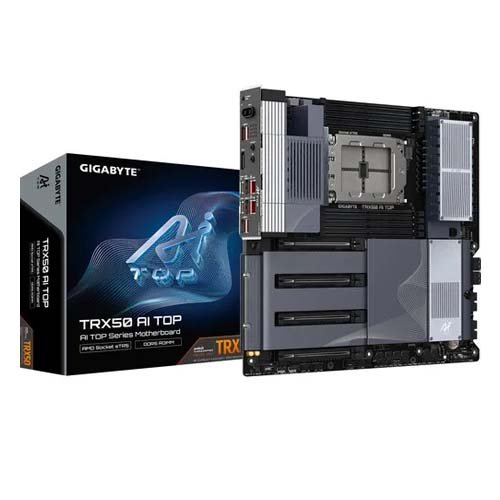

Gigabyte TRX50 AI TOP sTR5 E-ATX Motherboard

Gigabyte TRX50 AI TOP sTR5 E-ATX Motherboard

Overview :

• E-ATX Form Factor
• AMD TRX50 Chipset
• sTR5 Socket
• 8 x DDR5 ECC R-DIMM Slots
• 4 x PCIe 5.0 x16 with PCIe UD Slot X
• 4 x M.2 | 4 x SATA III
• 2 x 10GbE LAN | Wi-Fi 7 | Bluetooth 5.3
• EZ-Latch Plug, Plus, & Click
• Support for Windows 11 (64-Bit)

Ultimate Scalability
This motherboard brings you the future-proofing capability with quad PCIe 5.0 x16 double-width slots for a multi-GPU configuration. There are also four PCIe 5.0 M.2 slots for adding more storage.

Dual 10G LAN
The Dual 10G LAN design delivers fast transfer speeds to ensure a stable transmission environment when the system is performing cloud computing or providing external computing services.

Wi-Fi 7
Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds.
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7’s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation – dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

The motherboard utilizes the Gigabyte ultra-high gain antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.

Dual USB4 Type-C Ports
The dual USB4 Type-C ports provide improved data transfer speeds over the previous USB generation, delivering up to 40 Gb/s each. These speeds are particularly beneficial to video editing, large file transfers, and data-intensive workloads.
DDR5 Performance
This motherboard supports 8-channel ECC R-DIMMs (up to 8000 MT/s when overclocked) to provide optimal bandwidth and a maximum capacity of up to 2TB for computation throughput, offering ample temporary storage for model training and machine learning. Feature-rich BIOS functions make it easy to get the DDR5 performance you want, with one-click options such as DDR5 Auto Booster, High Bandwidth, and Low Latency. Don’t forget to set the AMD EXPO to optimize memory settings for optimal performance.
Digital Twin VRM Design

This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 16 VCORE phases unlock the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

EZ-Latch Designs
PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cards
Tool-less installation for M.2 heat sink
Tool-less installation for M.2 SSDs
Q-FLASH
Q-FLASH Auto Scan
When using USB flash drive during Q-Flash, the BIOS file will be auto scanned instead of searching manually
Q-FLASH Plus

Upgrade your BIOS without the need to install the CPU, RAM, or GPU first
Sensor Panel Link
The built-in video port streamlines the Sensor Panel setup without management concerns.

Specification :
