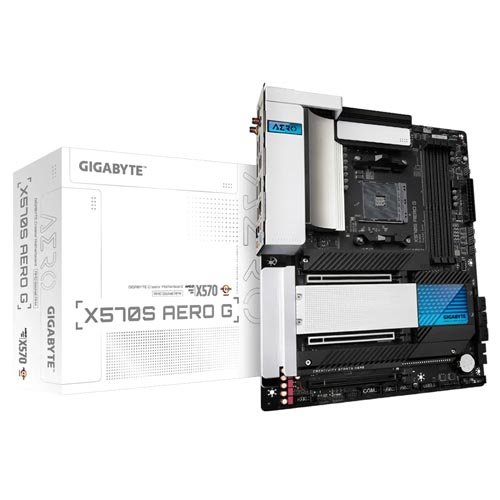

Gigabyte X570S AERO G WIFI AM4 ATX Motherboard
Overview :
AMD X570 Creators Motherboard with unique VisionLINK I/O design, Effective thermal solution, Wi-Fi 6 802.11ax and Intel® 2.5GbE LAN, PCIe® 4.0 x16 slots, Quad NVMe PCIe® 4.0 x4 M.2 Connectors, USB 3.2 Gen 2×2 Type-C®
- Support AMD Ryzen™ 5000 series / Ryzen™ 4000 G series / Ryzen™ 3000 series / Ryzen™ 3000 G series / RYZEN 2000 series / Ryzen™ 2000 G series processors
- Dual Channel ECC / Non-ECC Unbuffered DDR4 memory, 4 DIMMs
- Go further without more cables by VisionLINK I/O design
- High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
- Wi-Fi 6 2×2 802.11ax with all new antenna support for better signal
- Comprehensive connectivity by front and rear USB 3.2 Type-C® connectors
- 4 Ultra-Fast NVMe PCIe® x4 M.2 connectors with unique thermal guards
- Effective cooling solution design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
Specification :
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors |
| Chipset | AMD X570 |
| Memory | 1. AMD Ryzen™ 5000 Series processors: |
| Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 2. AMD Ryzen™ 4000 G-Series processors: | |
| Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3. AMD Ryzen™ 3000 Series processors: | |
| Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 4. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors: | |
| Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses | |
| 5. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 6. Dual channel memory architecture | |
| 7. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| 8. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 9. Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | 1. 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz |
| * Support for drawing tablets and 20V@3A of power delivery. | |
| * Support for DisplayPort 1.4 version and HDCP 2.3 | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Maximum shared memory of 16 GB | |
| * For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only. | |
| Audio | 1. Realtek® ALC1220-VB Audio CODEC |
| * The back panel line out jack supports DSD audio. | |
| 2. Support for DTS:X® Ultra | |
| 3. High Definition Audio | |
| 4. 2/4/5.1/7.1-channel | |
| 5. Support for S/PDIF Out | |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6 AX200 |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band | |
| 2. BLUETOOTH 5.1 | |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| 1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode | |
| 2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode | |
| 3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode | |
| 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: | |
| 1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x8 mode | |
| 2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x8 mode | |
| 3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. | |
| 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: | |
| 1. Supporting PCIe 4.0* /3.0 x4 mode | |
| * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. | |
| * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. | |
| Multi-Graphics Technology | 1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only. | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: |
| 1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs | |
| 2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: | |
| 1. Supporting PCIe 4.0* /3.0 x4/x2 SSDs | |
| * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. | |
| 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: | |
| 1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs | |
| * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. | |
| 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs: | |
| 1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs | |
| * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. | |
| 6 x SATA 6Gb/s connectors, integrated in the Chipset: | |
| 1. Support for RAID 0, RAID 1, and RAID 10 | |
| * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| USB | CPU: |
| 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support | |
| 2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 3. 2 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset+ASMedia® USB 3.2 Gen 2×2 Controller: | |
| 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support | |
| Chipset: | |
| 1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| 3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers | |
| Chipset+2 USB 2.0 Hubs: | |
| 1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x 4-pin ATX 12V power connector | |
| 4. 1 x CPU fan header | |
| 5. 1 x water cooling CPU fan header | |
| 6. 4 x system fan headers | |
| 7. 2 x system fan/water cooling pump headers | |
| 8. 2 x addressable LED strip headers | |
| 9. 2 x RGB LED strip headers | |
| 10. 1 x CPU cooler LED strip/RGB LED strip header | |
| 11. 4 x M.2 Socket 3 connectors | |
| 12. 6 x SATA 6Gb/s connectors | |
| 13. 1 x front panel header | |
| 14. 1 x front panel audio header | |
| 15. 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 16. 2 x USB 3.2 Gen 1 headers | |
| 17. 2 x USB 2.0/1.1 headers | |
| 18. 1 x noise detection header | |
| 19. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 20. 1 x Thunderbolt™ add-in card connector | |
| 21. 1 x serial port header | |
| 22. 1 x Clear CMOS jumper | |
| 23. 2 x temperature sensor headers | |
| 24. 1 x Q-Flash Plus button | |

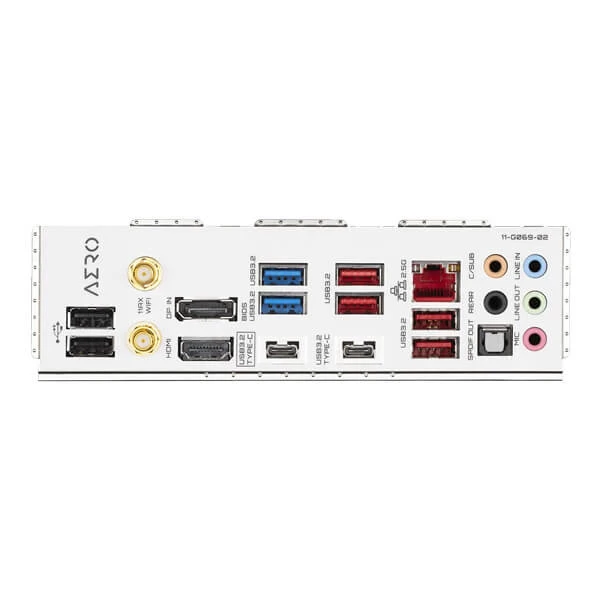

| Back Panel Connectors | 1. 2 x USB 2.0/1.1 ports |
| 2. 2 x SMA antenna connectors (2T2R)Š Š 1 x HDMI port | |
| 3. 1 x DisplayPort In port | |
| 4. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support | |
| 5. 1 x USB Type-C® port, with USB 3.2 Gen 1 support | |
| 6. 4 x USB 3.2 Gen 2 Type-A ports (red) | |
| 7. 2 x USB 3.2 Gen 1 ports | |
| 8. 1 x RJ-45 port | |
| 9. 1 x optical S/PDIF Out connector | |
| 10. 5 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| 7. Noise detection | |
| BIOS | 1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. cFosSpeed | |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
