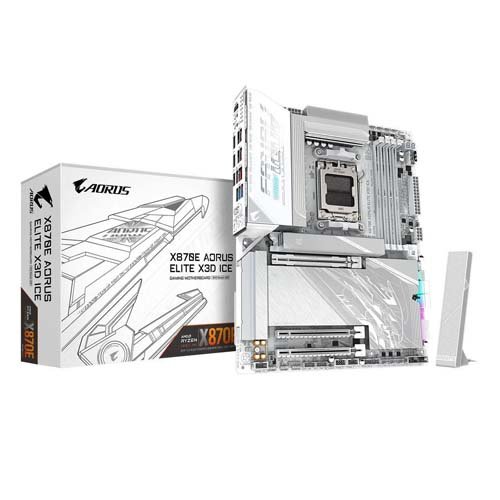

Gigabyte X870E AORUS ELITE X3D ICE AMD AM5 Motherboard
Overview :
X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications
| Model | |
| Brand | GIGABYTE |
| Model | X870E AORUS ELITE X3D ICE |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipsets | |
| Chipset | AMD X870E |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Up to DDR5 9000(O.C) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
| Storage Devices | |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: | |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| * The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4 controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4 controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. | |
| 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs | |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| * RAID 5 is only available on AMD Ryzen 9000 Series Processors. | |
| RAID 0 and RAID 1 support for SATA storage devices | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |
| Rear Panel Ports | |
| Back I/O Ports | 1 x HDMI port (Note) |
| 1 x reset button | |
| 1 x power button | |
| 1 x Clear CMOS button | |
| 1 x Q-Flash Plus button | |
| 5 x USB 3.2 Gen 2 Type-A ports (red) | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 2 x USB4 USB Type-C ports (DisplayPort (Note)) | |
| 1 x RJ-45 port | |
| 3 x USB 3.2 Gen 1 ports | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2×2 support |
| 2 x USB 3.2 Gen 1 headers | |
| 2 x USB 2.0/1.1 headers | |
| Other Connectors | 1 x PCIe power connector |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| 2 x temperature sensor headers | |
| 1 x noise detection header | |
| Physical Spec | |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| Software Feature | |
| BIOS Feature | 1 x 512 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
