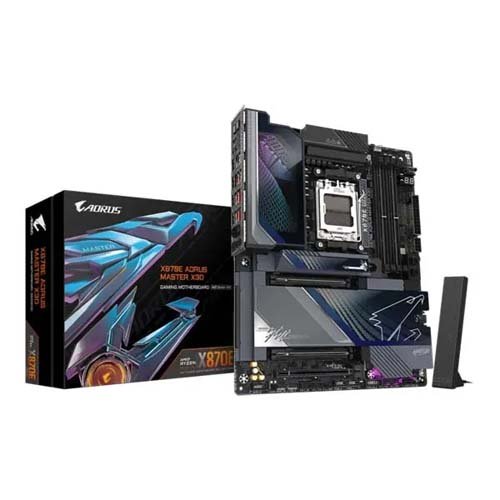

Gigabyte X870E Aorus Master X3D ICE Motherboard
Overview :
X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 18+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
PCIe EZ-Latch Plus Duo : One click for screwless & quick release on dual PCIe slots
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 5*M.2 slots, including PCIe 5.0 x4
PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications
| CPU Support | AMD Socket AM5: Ryzen™ 9000/8000/7000 Series (check GIGABYTE site for latest) |
| Chipset | AMD X870E |
| Memory | 4 x DDR5 DIMM up to 256 GB (64 GB single); DDR5 9000(O.C) to 4800 MT/s; Dual channel; Non-ECC un-buffered; AMD EXPO™/XMP support (check support list) |
| Onboard Graphics | AMD Radeon™ Graphics: 1 x HDMI rear (4096×2160@60 Hz, HDMI 2.1), 1 x HDMI front (1920×1080@30 Hz, HDMI 1.4); ASMedia USB4®: 2 x USB4® Type-C (3840×2160@240 Hz, DP 1.4, HDR) |
| Audio | Realtek® ALC1220 + ESS ES9118 DAC; DTS:X® Ultra; HD 2/4/5.1-channel; S/PDIF Out; DSD support (front panel) |
| LAN | Realtek® 5GbE (LAN1), 10GbE (LAN2) |
| Wireless | MediaTek Wi-Fi 7 MT7927 RZ738 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, 320 MHz); Bluetooth 5.4 (Windows 11 required for Wi-Fi 7) |
| Expansion Slots | CPU: 1 x PCIe x16 (5.0 x16/4.0 x8/x4), 1 x PCIe x16 (5.0 x8, unavailable on 8000 Phoenix); Chipset: 1 x PCIe x16 (x4, shares with M2D_SB) |
| Storage | M.2 (CPU): M2A_CPU (PCIe 5.0/4.0 x4/x2, 2580/2280), M2B_CPU (PCIe 5.0 x4/x2, 2280, shares bandwidth w/ USB4); Chipset: M2C_SB/M2D_SB (PCIe 4.0 x4/x2, 2280), M2E_SB (PCIe 4.0 x2, 2280); 2 x SATA 6Gb/s; RAID 0/1/5/10 (NVMe/SATA) |
| USB (Rear) | USB4®: 2 x Type-C; 1 x Type-C Gen 2×2, 1 x Type-C Gen 2, 1 x Gen 2 Type-A (red), 6 x Gen 2 Type-A (red) |
| USB (Internal) | 1 x Type-C Gen 2×2 (65W PD); 2 x Gen 1 headers; 4 x 2.0 headers |
| Internal Connectors | Power: 24-pin ATX, 2 x 8-pin 12V, PCIe power; Fans/Pump: 1 x CPU, 1 x CPU OPT, 4 x SYS, 1 x SYS ext, 1 x SYS/WP; RGB: 4 x ARGB Gen2, 1 x RGB; Other: Front panel/audio/speaker, USB headers, TPM, chassis intrusion, Q-Flash Plus, reset/CMOS jumpers, temp sensors, noise detection |
| Back Panel | Q-Flash Plus/Clear CMOS/reset/power buttons; HDMI; 2 x USB4® Type-C; 1 x USB-C Gen 2×2/Gen 2; 7 x USB 3.2 Gen 2 (red); 2 x RJ-45; 2 x antennas; 2 x audio jacks; S/PDIF Out |
| I/O Controller | iTE® chip; H/W monitoring (voltage/temp/fan/flow/noise, fail warning, control) |
| BIOS | AMI UEFI, 512 Mbit; PnP/DMI/WfM/SM BIOS/ACPI support |
| Unique Features | GIGABYTE Control Center, Q-Flash/Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5 x 24.4 cm) |
