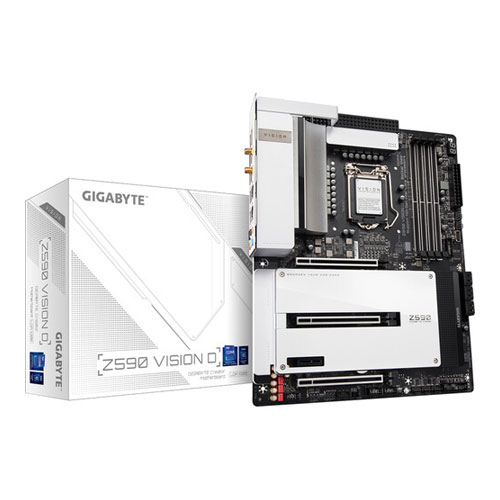

Gigabyte Z590 VISION D LGA 1200 ATX Motherboard
Overview :
Let your inner creativity flow with the Z590 VISION D LGA 1200 ATX Motherboard from GIGABYTE. Sporting a unique design, the Vision G gives you many offerings ideal for builders looking to focus on video editing, 3D rendering, and even gaming. Using the Z590 chipset as the foundation to the board, you can harness the power of Intel 11th Gen LGA 1200 processors, unlocking enhanced PCIe 4.0 speeds for your graphics cards and M.2 solid-state drives.
The Vision G provides you with four dual-channel DDR4 RAM slots, six SATA III ports, four M.2 slots, all working together to ensure enhanced speeds and swift multi-tasking capabilities. Several PCIe 4.0 and 3.0 x16 slots allow you to install a variety of graphics and utility cards designed to assist in rendering large files and optimizing performance for resource-demanding software. Use various peripherals such as external drives and editing tools with various USB 3.1 Gen 1, Gen 2, and Gen 2×2 Type-A and Type-C ports. Additionally, Thunderbolt 4 ports give you access to high-powered external devices such as storage drive arrays and displays that can utilize daisy-chain technology expanding your productivity.
Thunderbolt 4
Experience enhanced data transfer speeds up to 40 Gb/s, Power Delivery, and even high-definition video with Thunderbolt 4 capabilities. With a single USB Type-C connector, you can connect to high-powered devices such as storage drive arrays, external GPUs, and displays that support DisplayPort Alt Mode. You can also daisy chain compatible devices, extending your productivity and granting you massive flexibility for your creative works.
VisionLink
Transmit data, video output, and power charging all through a single USB Type-C cable with GIGABYTE VisionLink technology. Connect devices like drawing tablets without cluttering up your workspace with cables, keeping your work area neat and organized. VisionLink also enhances the performance of your devices with DisplayPort_In technology, enhancing the speed and performance of your devices. Transfer data, send video signal with DisplayPort Alt Mode, and charge your devices with 60W Power Delivery, giving you massive flexibility with just a single port.
Peripheral Connectivity
The VISION D allows you to connect an array of resource-demanding peripherals such as external drives and editing tools with USB 3.2 Gen 1 and Gen 2 Type-A ports. Keyboards, mice, and other low-powered devices can be connected to the USB 2.0 ports for basic connectivity and functionality. A single USB 3.2 Gen 2×2 Type-C header allows you to gain easy front-panel access, allowing you to take advantage of enhanced Type-C connector. If you prefer to use wireless devices, Bluetooth 5.1 integration is included, giving you a cable-free experience.
PCIe Multi-Card Support
Expand the utility of your workstation with an array of PCIe x16 slots that work together to ensure system stability. The first and second slots run at PCIe 4.0 speeds, offering enhanced operation suitable for professional graphics cards and rendering hardware. PCIe 3.0 x4 and x1 slots allow you to install a variety of utility cards to assist in rendering or networking.
Networking Connectivity
Experience high-speed networking with 2.5 GbE LAN and Wi-Fi 6 (802.11ax) technology. Boasting speeds 2.5 times faster than 1 GbE networking, the integrated 2.5 GbE RJ45 port grants you a secure, wired connection suitable for quickly uploading and downloading large files. If you prefer to use a wireless networking access point, Wi-Fi 6 (802.11ax) is also available, giving you speeds up to 2.4 Gb/s.
PCIe 4.0 Design
Embracing the power of 11th Gen Intel processors, you unlock PCIe 4.0 capabilities, giving you access to enhanced speeds for graphics and utility cards as well as M.2 solid-state storage drives. This accelerates system bandwidth performance, reducing rendering time for high-quality projects.
Triple PCIe M.2 Storage
The VISION D comes equipped with three M.2 PCIe slots, allowing you to experience faster application loading and allowing you to expand your digital content library with ease. When paired with an 11th Gen Intel processor, you can experience data transfer speeds up to 7-times faster than traditional SATA solid-state drives, ideal for creators looking for increased system performance.
Cooling Enhancements
Equipped with an extended VRM heatsink and heatpipe, the VISION D redirects and dissipates heat away from the chipset and components, keeping your parts safe from damage caused by excessive heat build-up. M.2 Thermal Guard is an extended heatsink that keeps your solid-state drives cool during operation. To ensure proper cooling and thermal control, Smart Fan 6 software monitors your motherboard and adjusts fans to ensure your system doesn’t overheat.
DTS:X Ultra Sound
Immerse yourself in media with integrated DTS:X audio. Whether you are creating or viewing media, the onboard sound design grants you channel-based, scene-based, and object-based audio, allowing you to experience clear and expansive sound.
Specification :
CPU | |
Chipset | Intel Z590 |
CPU Socket | LGA 1200 |
Back Panel I/O | |
USB | 2 x USB 3.1 / USB 3.2 Gen 2 Type-A |
4 x USB 3.1 / USB 3.2 Gen 1 Type-A | |
Thunderbolt | 2 x Thunderbolt 4 |
Display | 1 x DisplayPort |
1 x HDMI | |
Audio | 5 x 3.5 mm |
1 x S/PDIF | |
Ethernet / Controller | 2 |
Wi-Fi Antenna | 2 x Connector |
Memory | |
Memory Slots | 4 x 288-Pin |
Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
Storage Expansion | |
SATA | 6 x SATA III |
M.2 | 1 x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) |
1 x M Key 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2) | |
1 x M Key 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2) | |
U.2 | None |
Optane Memory Support | Yes |
RAID Support | RAID 0, 1, 5, 10 |
Internal I/O | |
Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode) |
1 x PCIe 4.0 x16 (x8 mode) | |
1 x PCIe 3.0 x16 (x4 mode) | |
1 x PCIe 3.0 x1 | |
USB | 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port) |
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) | |
2 x USB 2.0 Header (Supports 4 USB Type-A Port) | |
Multi-GPU Support | 2-Way, Quad-GPU AMD CrossFireX |
Air Cooling | 1 x 4-Pin CPU |
4 x 4-Pin System | |
2 x 4-Pin Assistant | |
1 x Noise Sensor | |
1 x Thermal Sensor | |
Liquid Cooling | 1 x 4-Pin Pump |
Power Connectors | 1 x 24-Pin Mainboard |
1 x 8-Pin ATX | |
1 x 4-Pin ATX | |
Security | TPM Module |
LED Header | 4 x RGB |
Diagnostics | Clear CMOS, Flash BIOS |
BIOS | |
ROM | 256 Mb |
Front Panel I/O | |
I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2 |
Audio | |
Audio Codec | Realtek ALC4080 (7.1-Channel) |
Wireless | |
Bluetooth | 5.1 |
Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
Software | |
Supported Operating Systems | Windows 10 (64-Bit) |
Physical | |
Form Factor | ATX |
Dimensions | 9.6 x 12.0″ / 24.4 x 30.5 cm |
