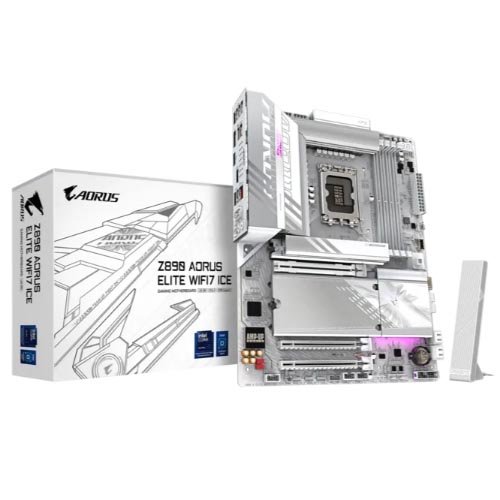

GIGABYTE Z890 Aorus Elite WIFI7 ICE Motherboard
Overview :
- Supports Intel Core Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : THUNDERBOLT 4 Type-C with DP-Alt, DisplayPort
- High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Infinite Memory Performance:
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power:
Better Play AORUS Series, steady power keeps your gaming smooth.
Comprehensive Thermal:
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Hassle-free Assembly:
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
All-round Connectivity:
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Specification :
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9200 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| Graphics Port | 1 x Thunderbolt 4,1 x front HDMI,1 x DisplayPort |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| Chipset: | |
| – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) | |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 2 x antenna connectors (2T2R) | |
| 1 x DisplayPort (Note) | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| (Note) Actual support may vary by CPU. | |
| Internal I/O Connector | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| (Note) Actual support may vary by CPU. | |
| Form Factor | ATX |
| Warranty | 3 Years |
